Home >> Infiniti >> 2013 >> FX50 >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> System Description >> Shift Mechanism >> System Description >> Clutch And Band Chart

Clutch And Band Chart

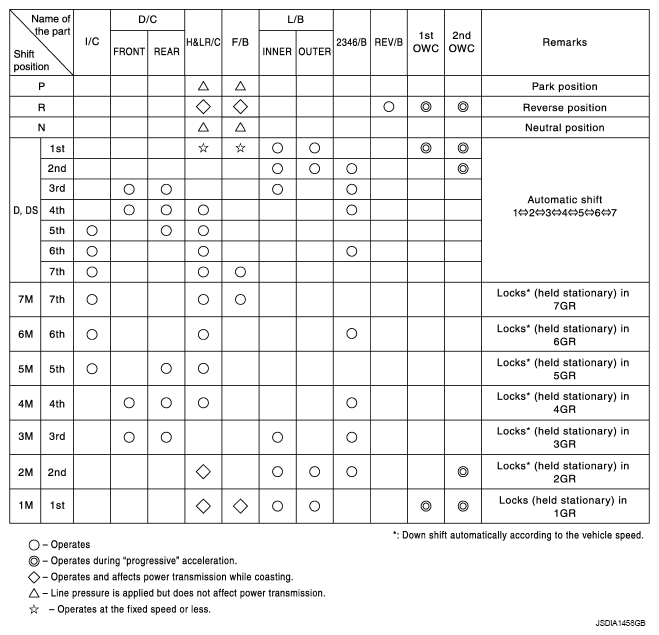

Fig 1: Clutch And Band Chart

G09002157

Courtesy of NISSAN NORTH AMERICA, INC.
