Symptom Table 1
Symptom Table 1

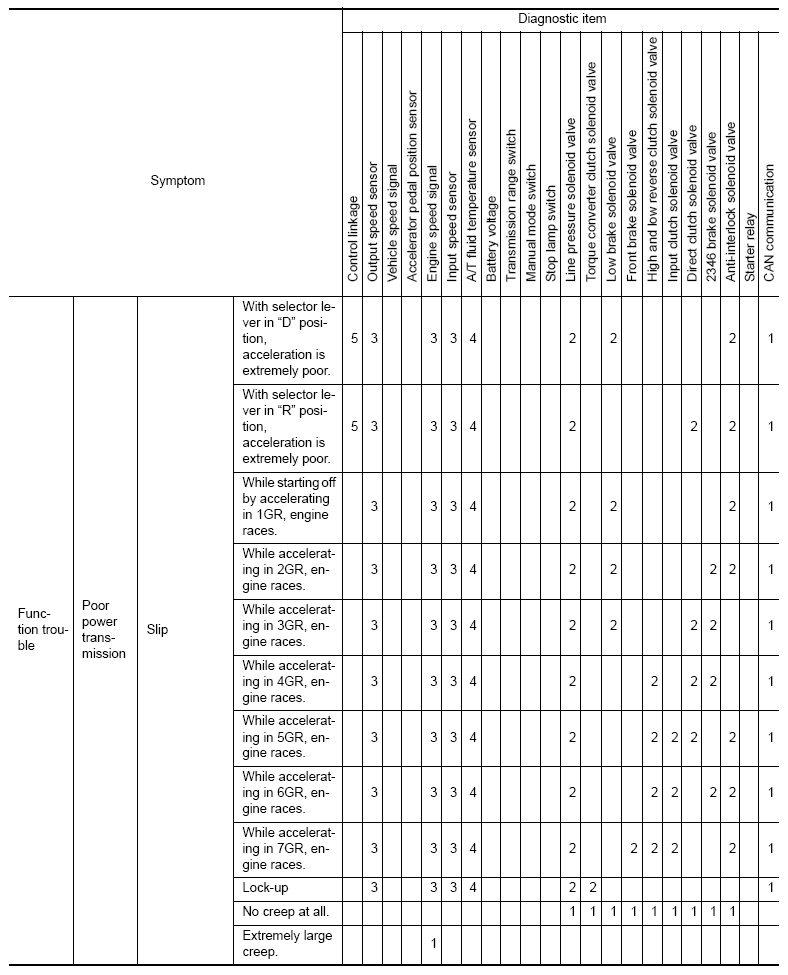

Fig 1: Diagnostics Item Symptoms Chart 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

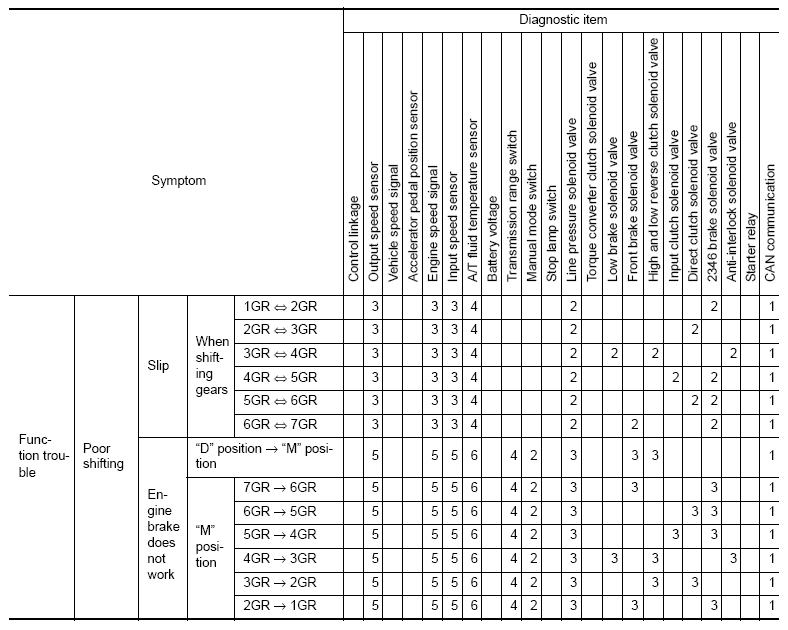

Fig 2: Diagnostics Item Symptoms Chart 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

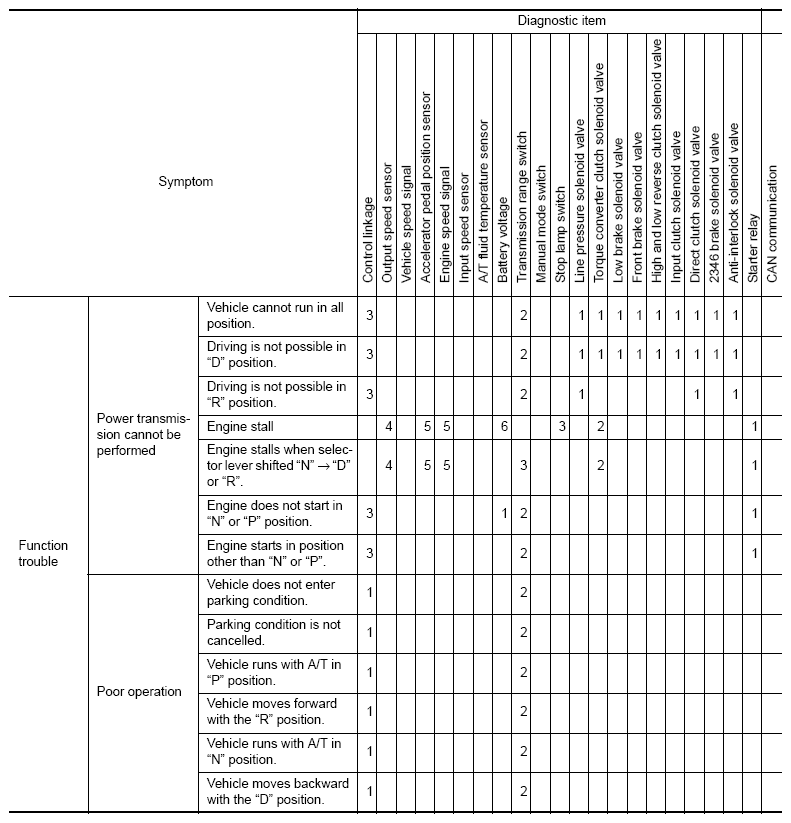

Fig 3: Diagnostics Item Symptoms Chart 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

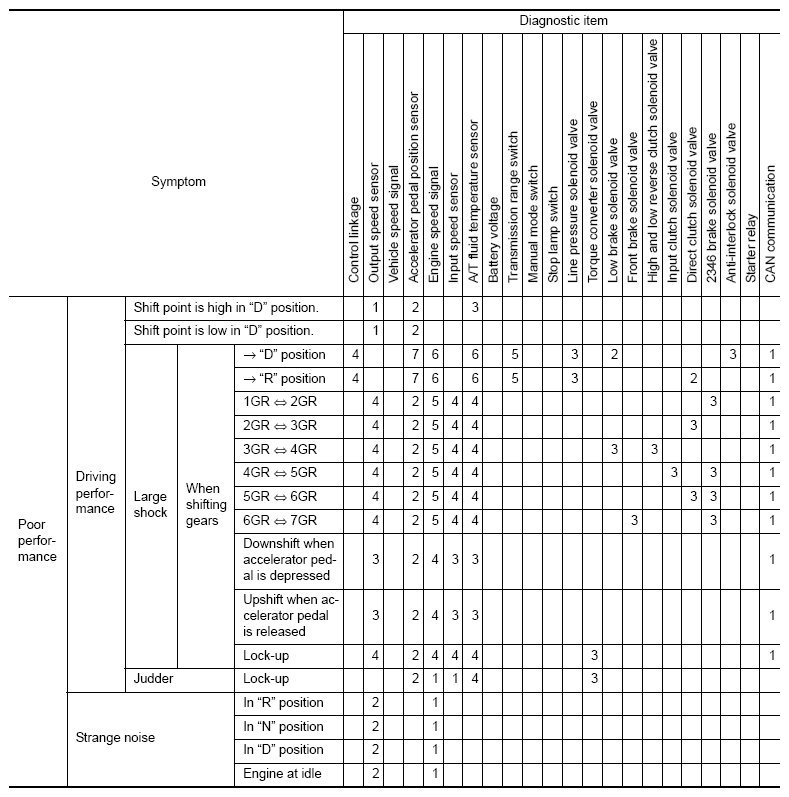

Fig 4: Diagnostics Item Symptoms Chart 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Diagnostics Item Symptoms Chart 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
