Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Rear Regulator
>>
Exploded View
Exploded View

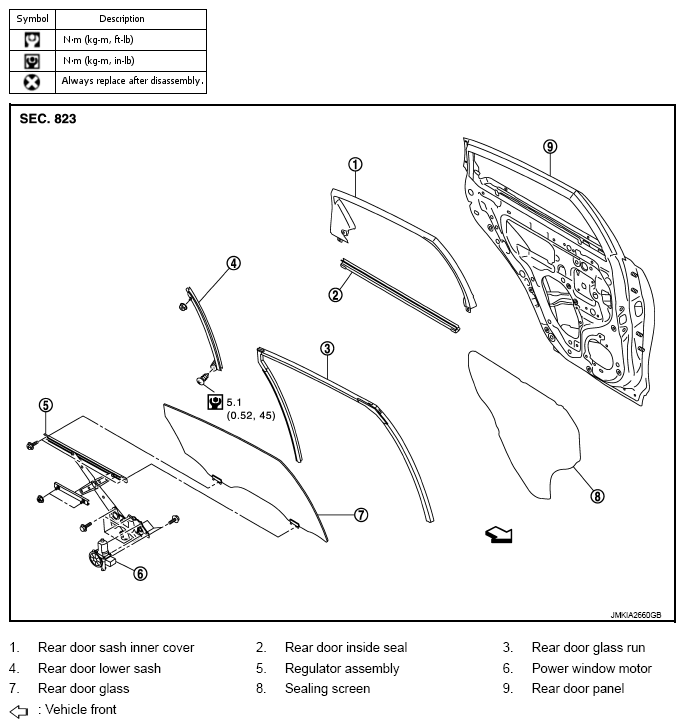

Fig 1: Exploded View Of Rear Regulator
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for the symbols in the figure.
