Symptom Table 2
Symptom Table 2

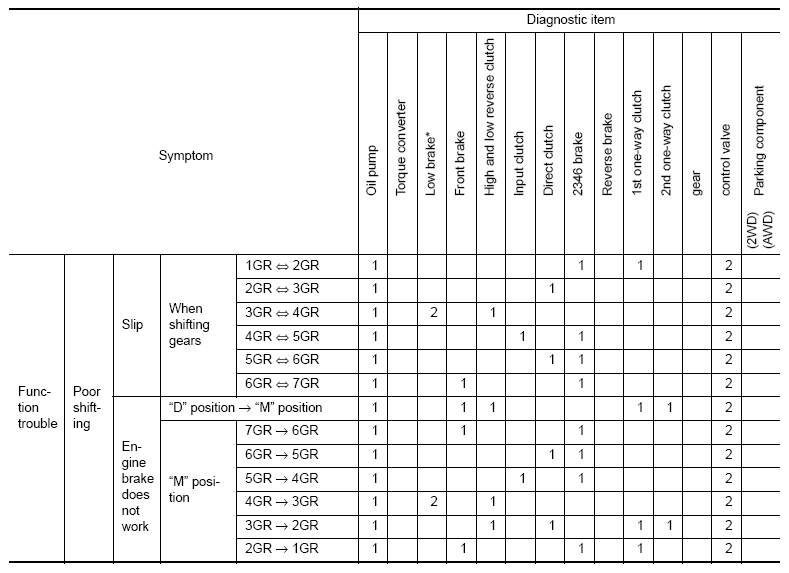

Fig 1: Diagnostic Items Symptom Chart 2 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

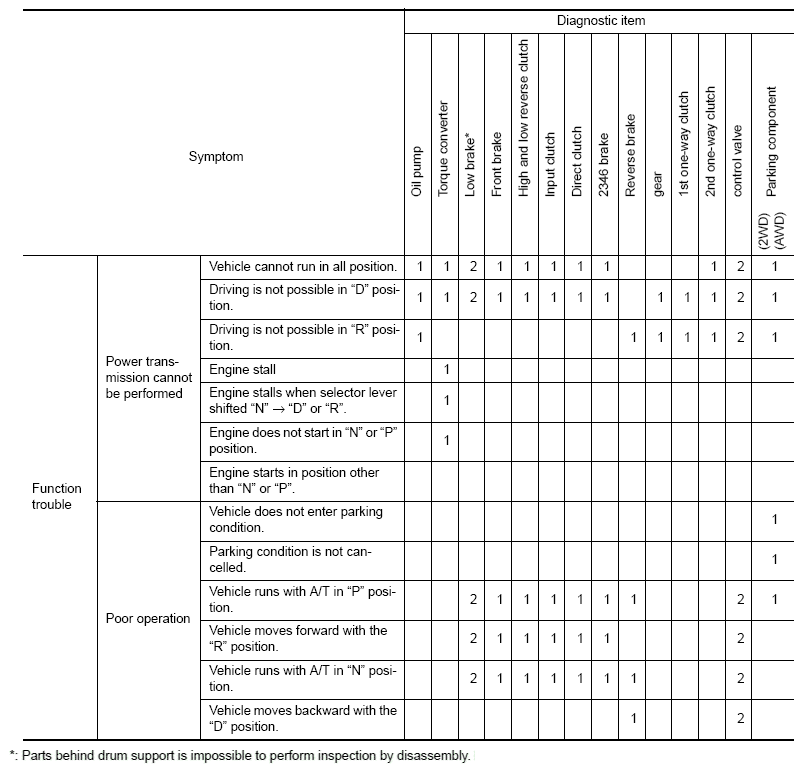

Fig 2: Diagnostic Items Symptom Chart 2 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

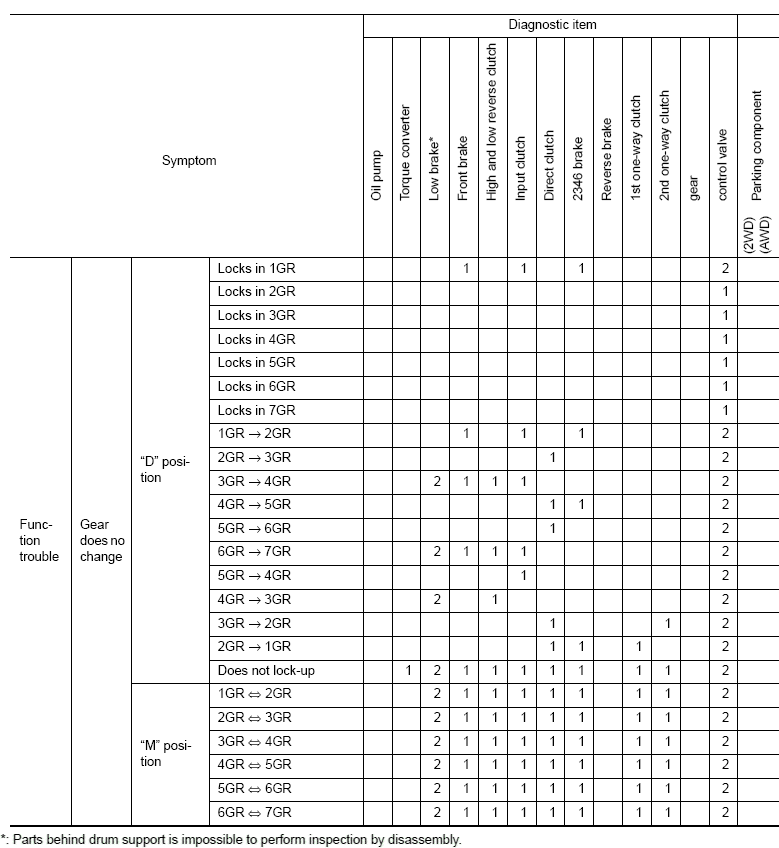

Fig 3: Diagnostic Items Symptom Chart 2 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

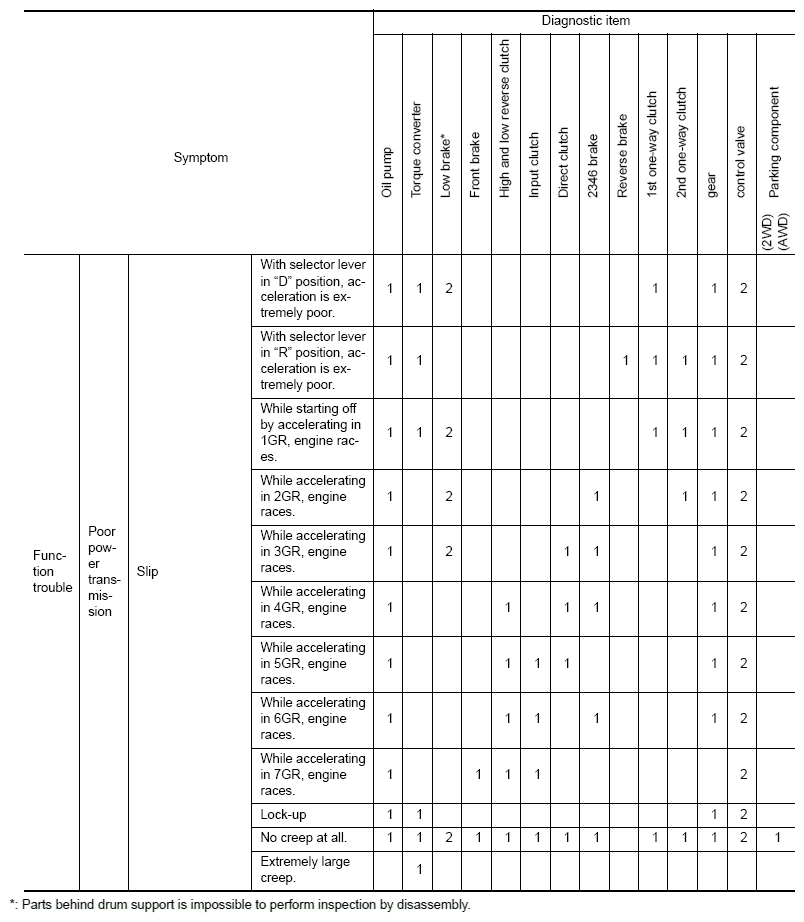

Fig 4: Diagnostic Items Symptom Chart 2 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Diagnostic Items Symptom Chart 2 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
