With Continuous Damping Control

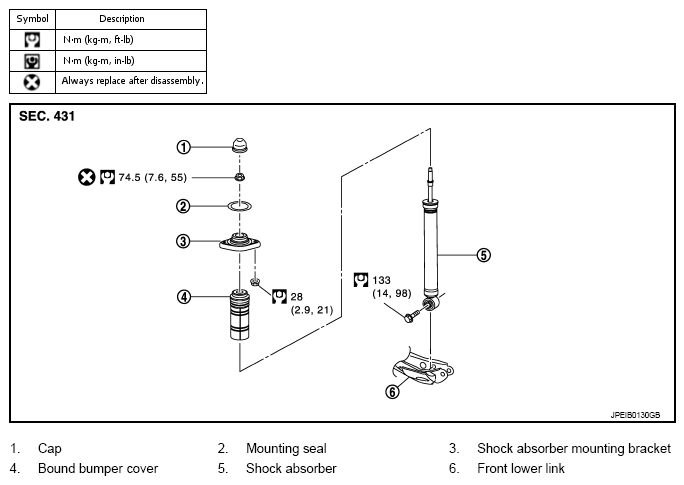

Fig 1: Exploded View Of Rear Shock Absorber (With Continuous Damping Control) With Torque Specifications
G09003776Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
