Exploded View
Exploded View

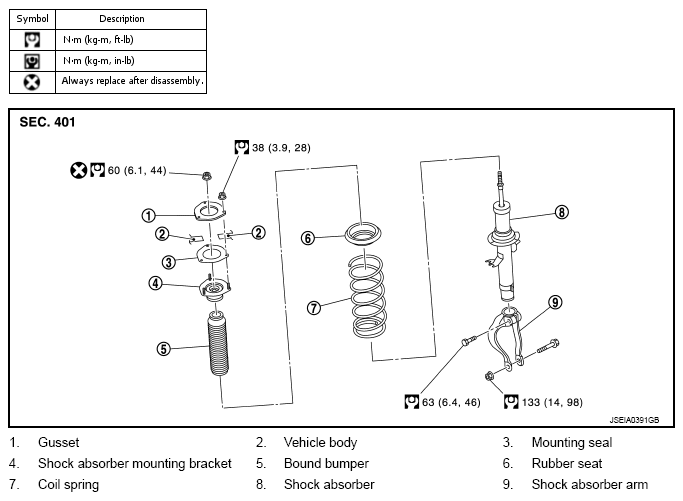

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber (AWD) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
