Steering System
>>
Removal And Installation
>>
Steering Gear And Linkage
>>
Exploded View
>>
Removal
Exploded View: Removal

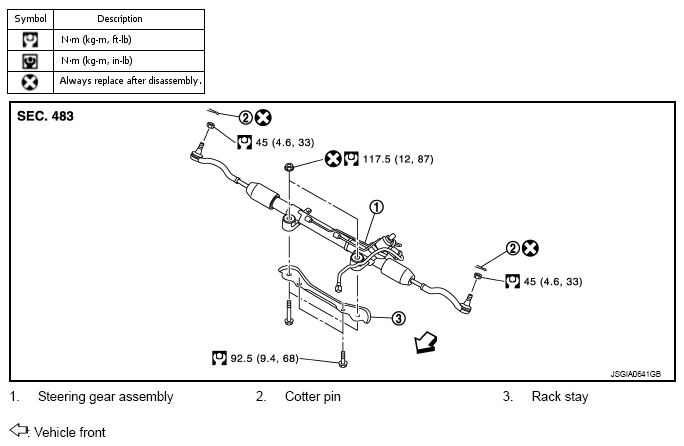

Fig 1: Exploded View Of Steering Gear And Linkage
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols in the figure.
