WITHOUT ELECTRIC MOTOR: Exploded View
WITHOUT ELECTRIC MOTOR: Exploded View

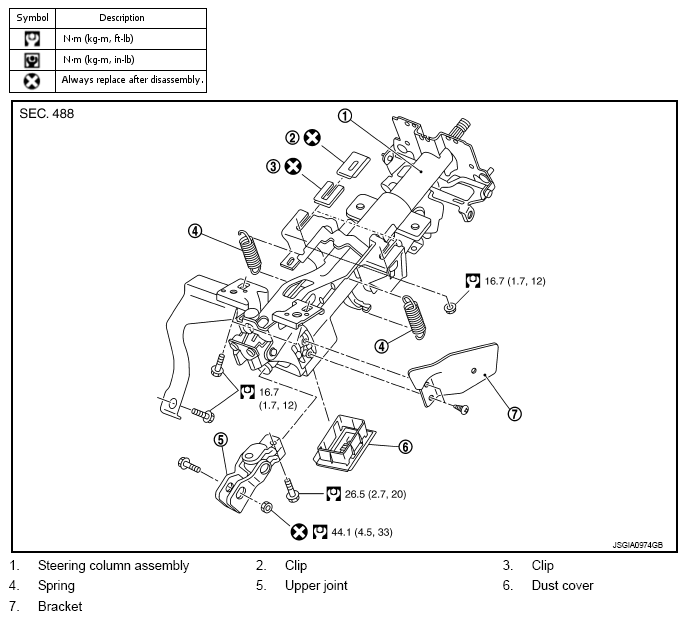

Fig 1: Exploded View Of Steering Column (Without Electric Motor)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols in the figure.
