System Description
>>
Intelligent Brake Assist
>>
Component Parts Location
Component Parts Location

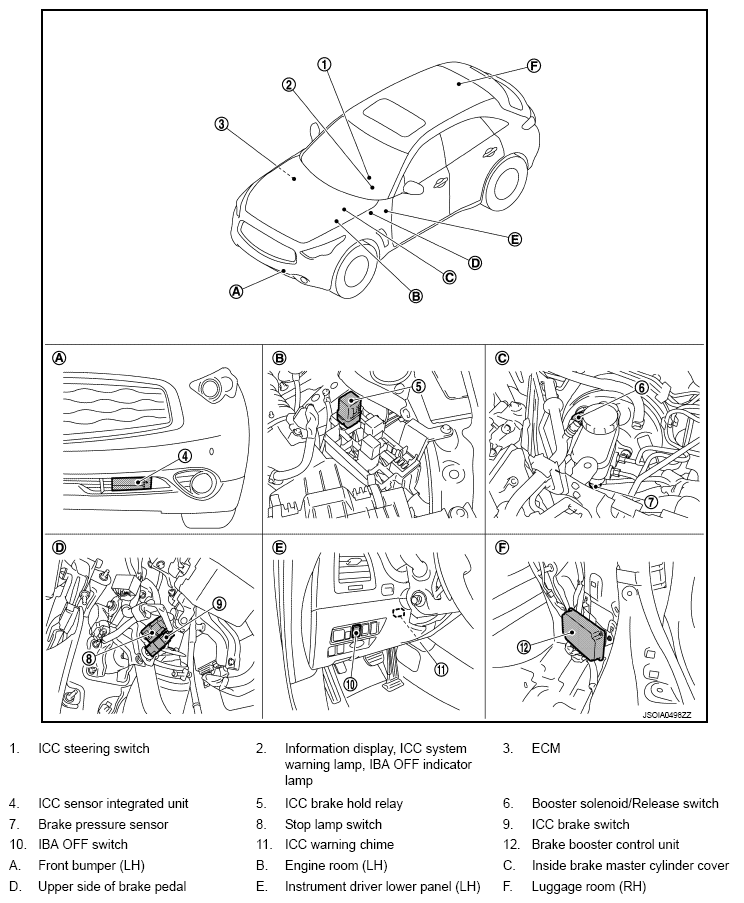

Fig 1: Intelligent Brake Assist System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
