Component Parts Location

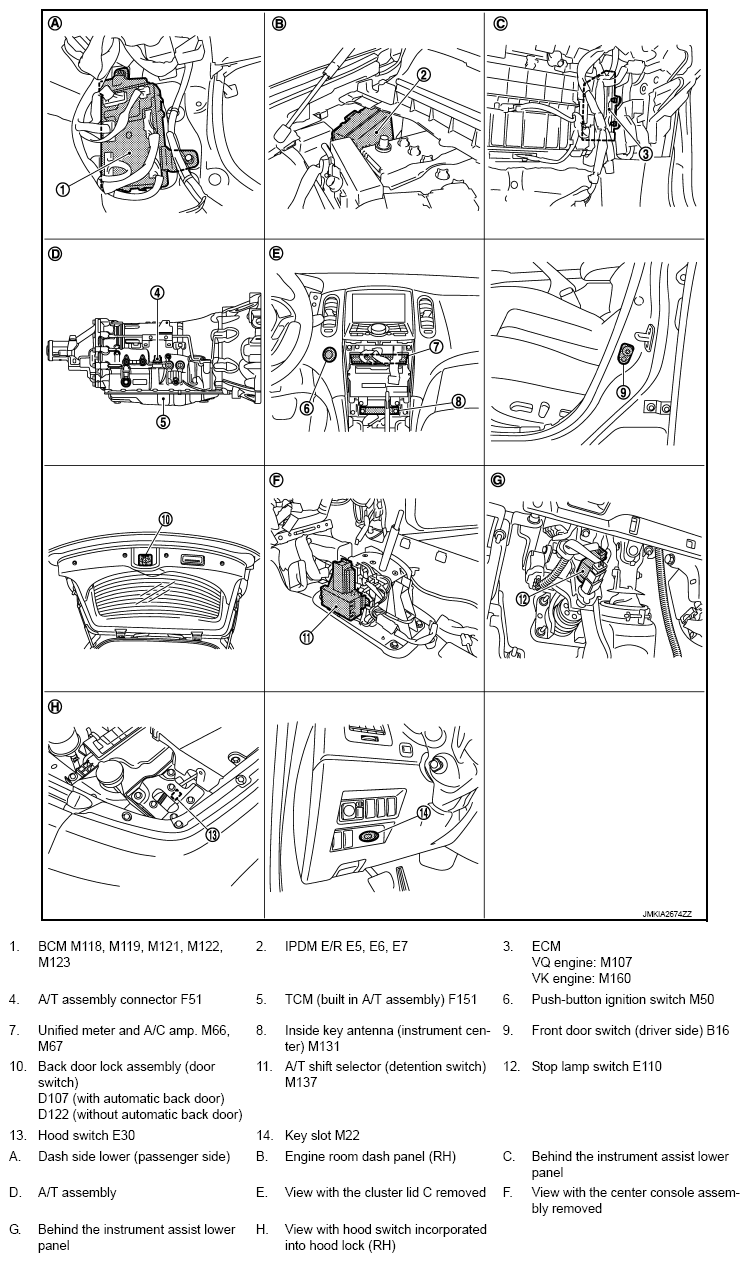

Fig 1: Intelligent Key System/Engine Start Function Components Location (1 Of 2)
G09006128Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Components Location (2 Of 2)
G09006129Courtesy of NISSAN NORTH AMERICA, INC.
