Concept of auto active test

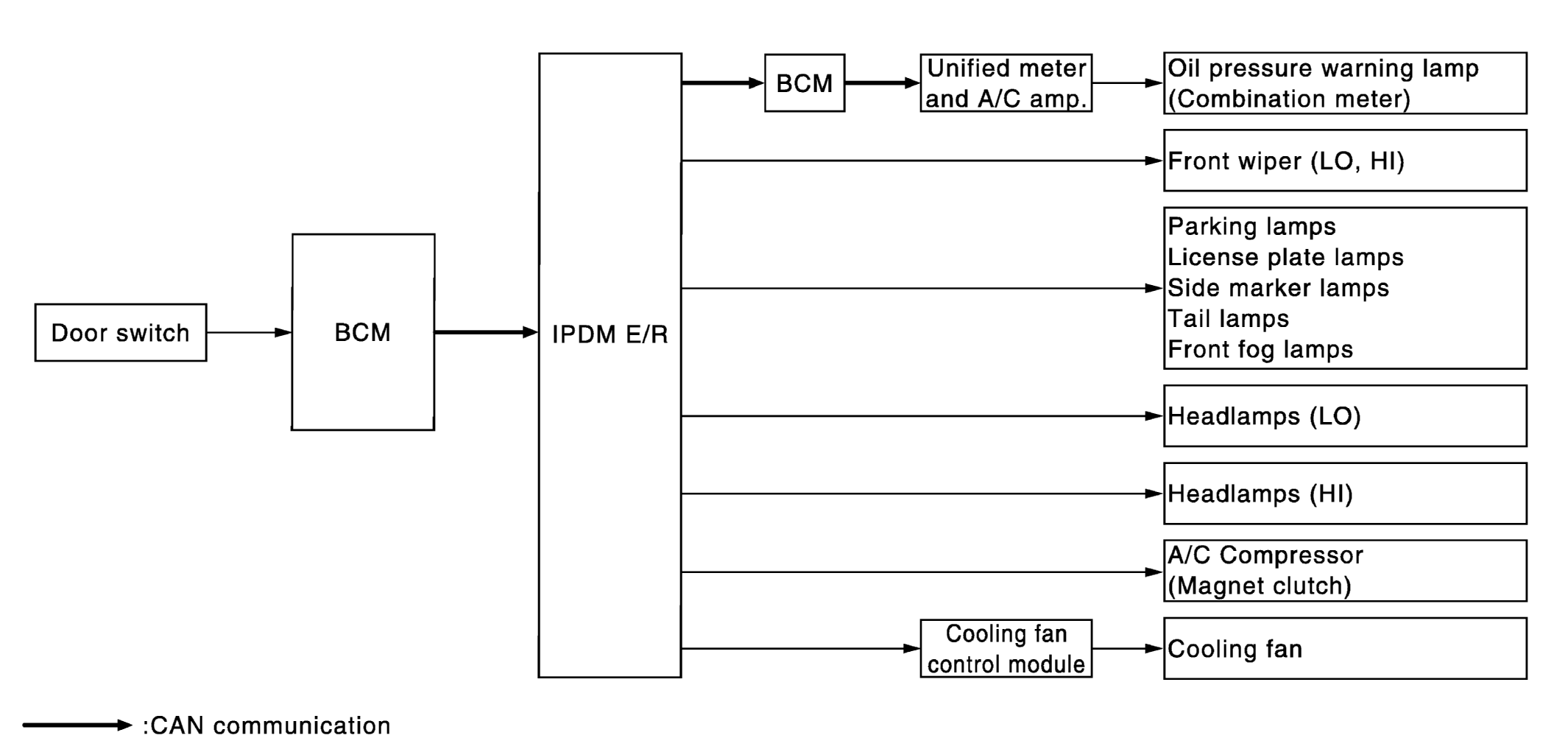

Fig 1: IPDM E/R System Diagram (Concept Of Auto Active Test)

Courtesy of NISSAN NORTH AMERICA, INC.

IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communication. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto active test starts successfully.
The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.
