Home
>>
Infiniti
>>
2013
>>
EX37 Base, RWD
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Hydraulic Line
>>
2WD
>>
2WD: Exploded View
2WD: Exploded View

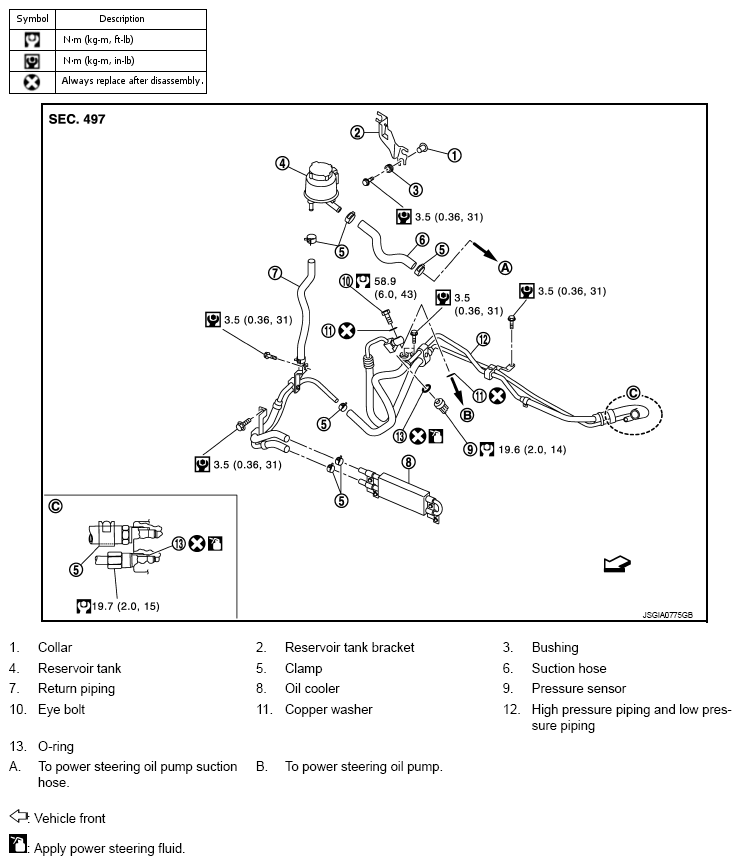

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described on the above.
