Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque.

  Bolt No.	A	B	C	D
  Quantity	4	3	4	2
  Bolt length "L" mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)

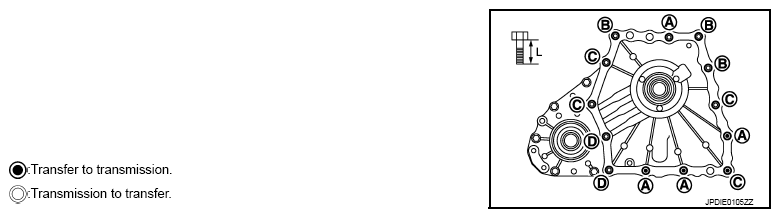

  Fig 1: Identifying Transfer To Transmission And Transmission To Transfer Mounting Bolts Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.
• When installing transfer breather hose, make sure there are no pinched or restricted areas on the transfer breather hose caused by bending or winding.
  • Set transfer breather hose (1) of transmission side with the paint mark (A) facing upward, and insert breather hose to breather tube until hose end reaches the tube bend R portion.
    Fig 2: Identifying Paint Mark On Transfer Breather Hose

    Courtesy of NISSAN NORTH AMERICA, INC.
  • Be sure to insert air breather hose (1) of transfer side to air breather tube (2) until hose end reaches the tube bend R portion.
    Fig 3: Identifying Air Breather Hose And Tube

    Courtesy of NISSAN NORTH AMERICA, INC.
  • Be sure to fix air breather hose in (A) parts of transmission and transfer.
• After the installation, check the fluid level, fluid leakage and the A/T positions. Refer to "INSPECTION ".
  Fig 4: Identifying Air Breather Hose Fixing Areas

  Courtesy of NISSAN NORTH AMERICA, INC.
