Symptom Table 2

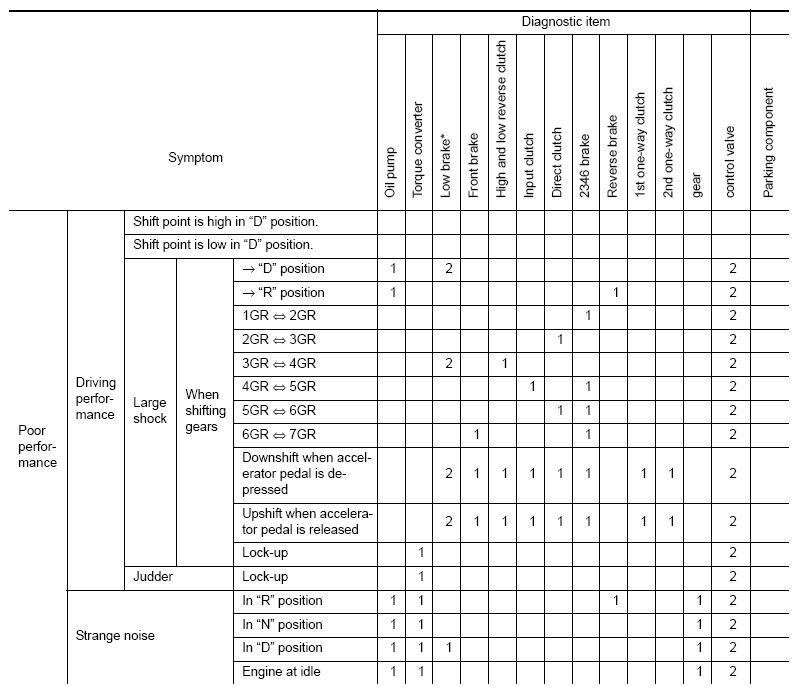

Fig 1: Symptom Chart 2 (1 Of 5)
G08992447Courtesy of NISSAN NORTH AMERICA, INC.

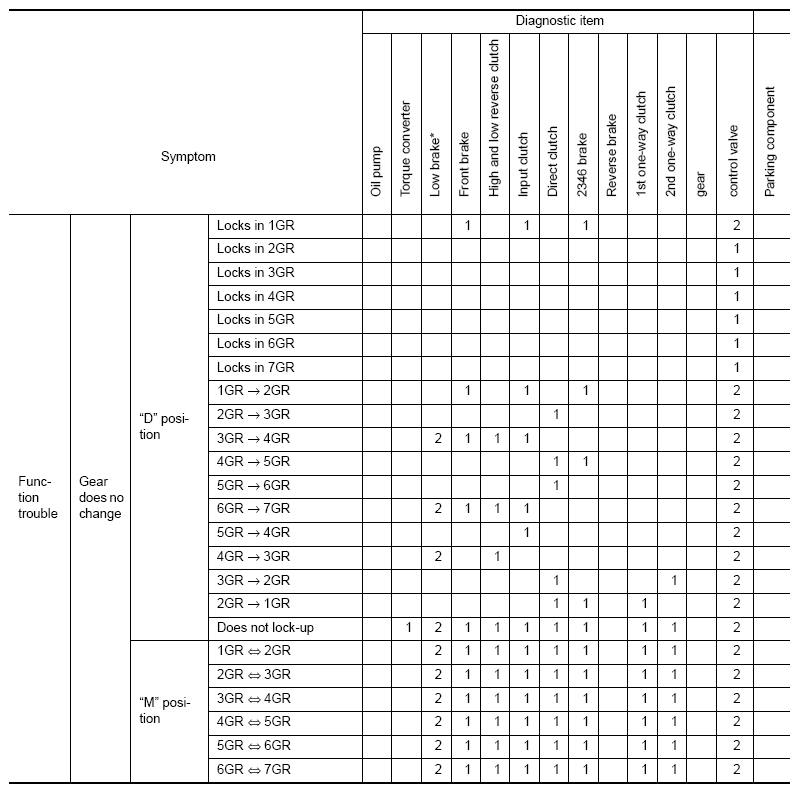

Fig 2: Symptom Chart 2 (2 Of 5)
G08992448Courtesy of NISSAN NORTH AMERICA, INC.

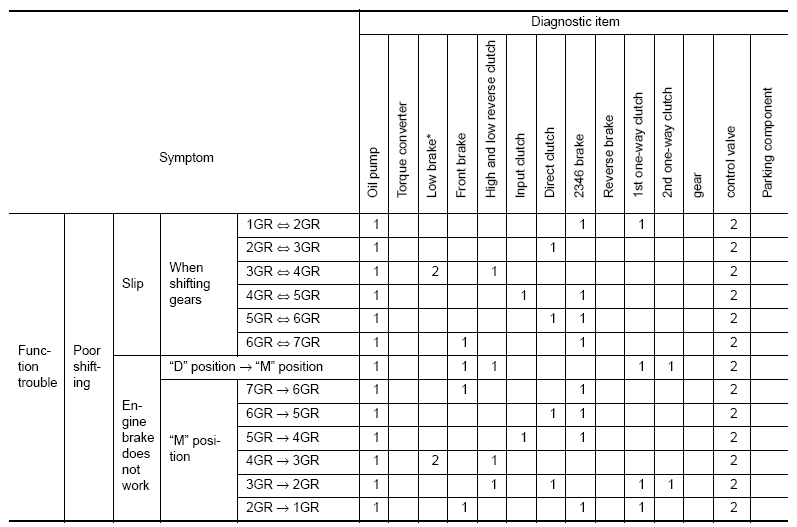

Fig 3: Symptom Chart 2 (3 Of 5)
G08992449Courtesy of NISSAN NORTH AMERICA, INC.

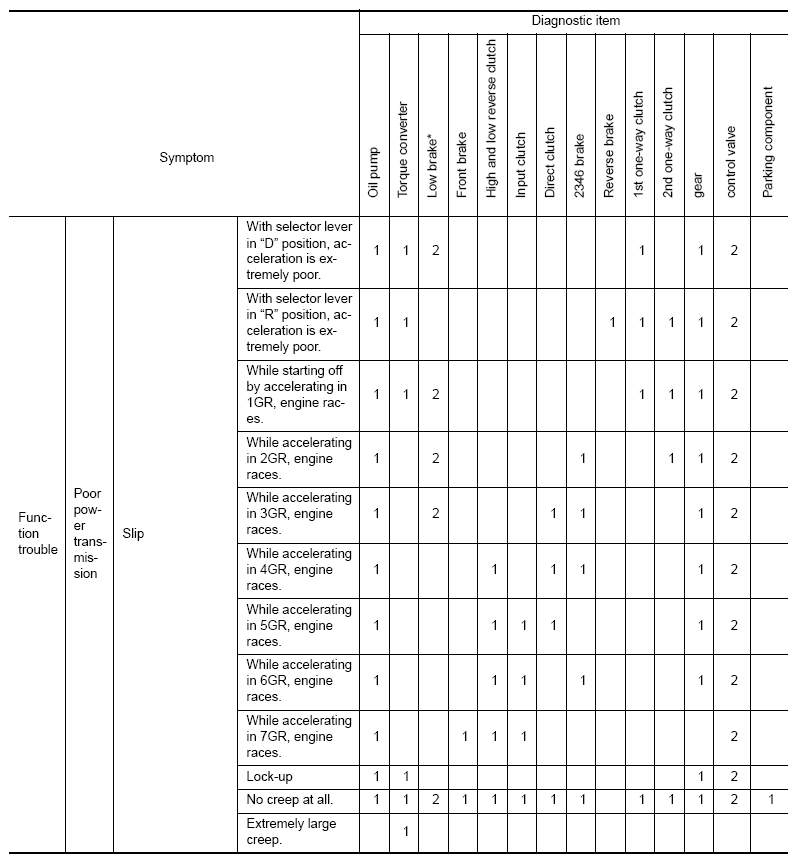

Fig 4: Symptom Chart 2 (4 Of 5)
G08992450Courtesy of NISSAN NORTH AMERICA, INC.

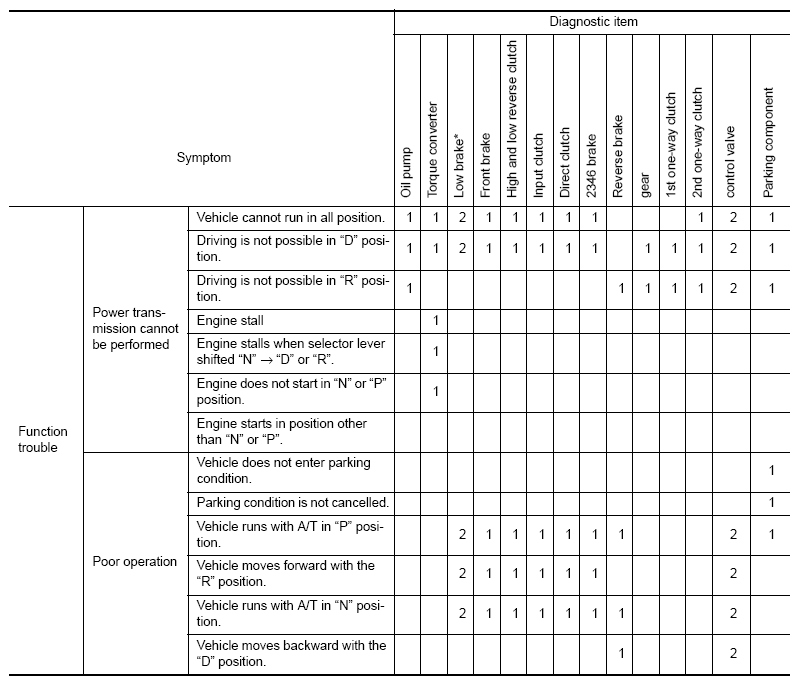

Fig 5: Symptom Chart 2 (5 Of 5)
G08992451Courtesy of NISSAN NORTH AMERICA, INC.
