2WD: Exploded View

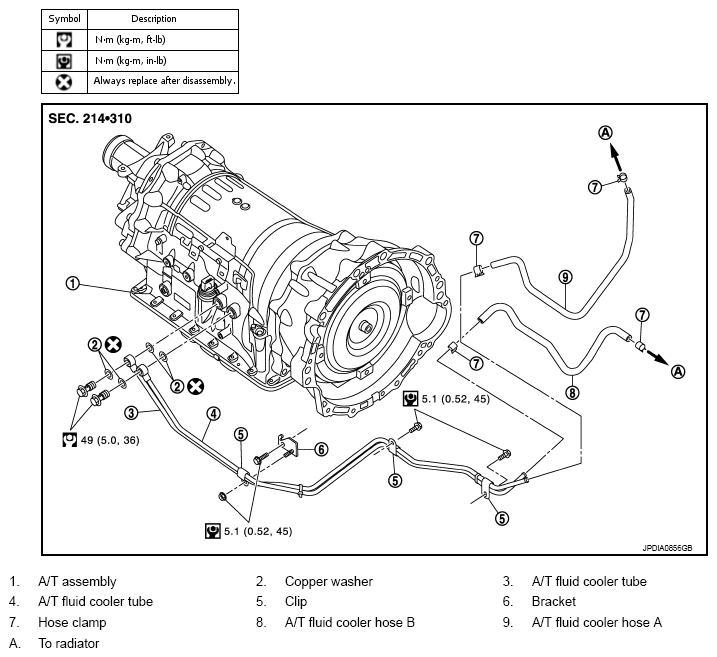

Fig 1: Exploded View Of Fluid Cooler System With Torque Specifications (2WD)

G08992538

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
