Infiniti
>>
2013
>>
EX37 Base, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension (AWD)
>>
Removal And Installation
>>
Upper Link
>>
Exploded View
Exploded View
Refer to "
COMPONENTS
" for symbols in the figure.

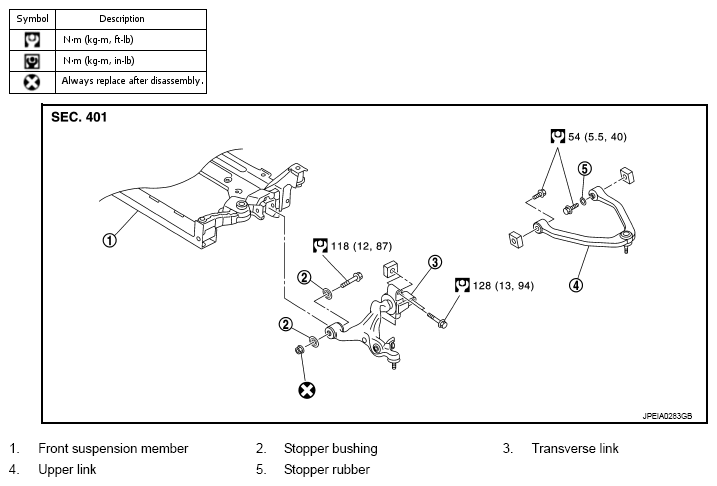

Fig 1: Exploded View Of Upper Link With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
