WITHOUT ELECTRIC MOTOR: Exploded View

Refer to "COMPONENTS " for symbols in the figure.

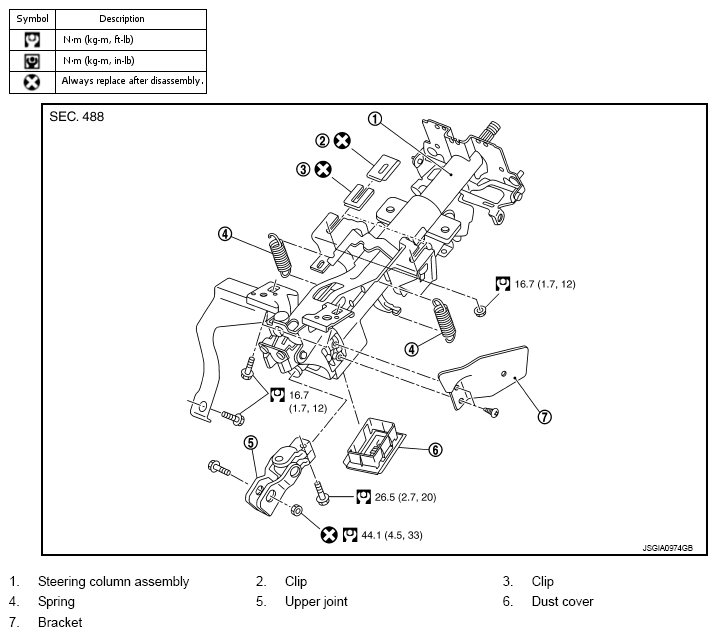

Fig 1: Exploded View Of Steering Column With Torque Specifications (Without Electric Motor)
G08993951Courtesy of NISSAN NORTH AMERICA, INC.
