AWD: Exploded View
AWD: Exploded View

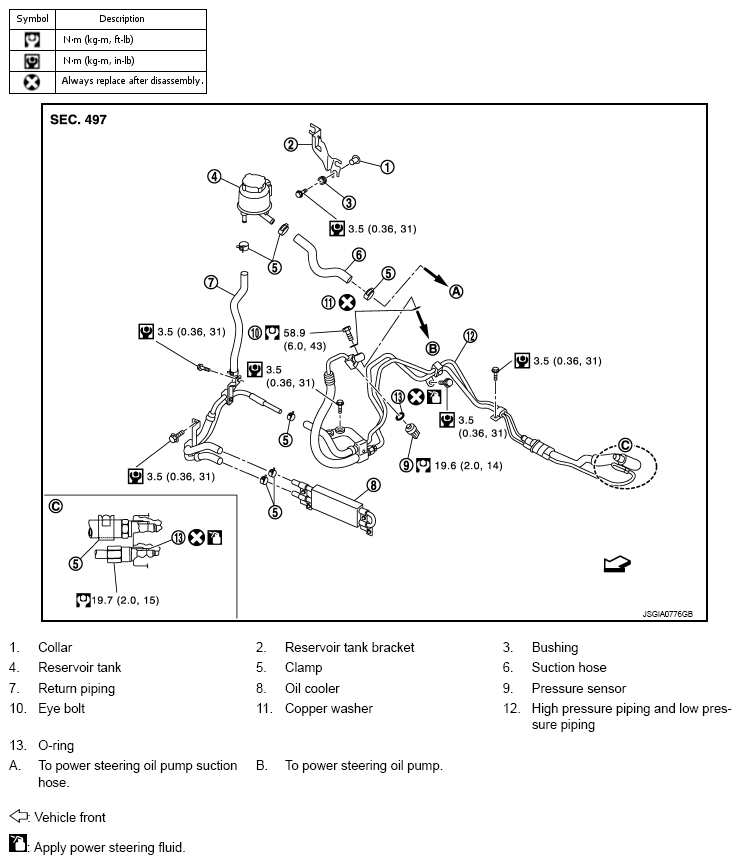

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described on the above.
