Exploded View: Disassembly

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.

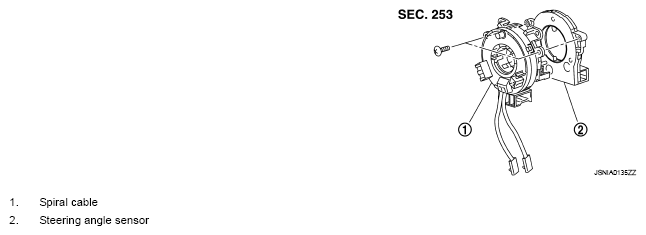

Fig 1: Identifying Steering Angle Sensor Components
G05731711Courtesy of NISSAN MOTOR CO., U.S.A.
