Exploded View

WARNING: This page is about a different car, the 2008 Infiniti EX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing BCM, perform "READ CONFIGURATION" to save or print current vehicle specification. Refer to DESCRIPTION  .

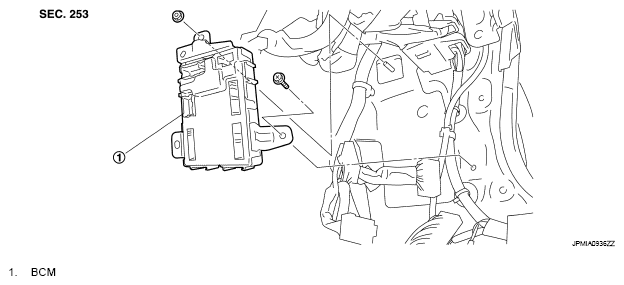

Fig 1: Identifying Body Control Module
G05730868Courtesy of NISSAN MOTOR CO., U.S.A.
