Component Parts Location

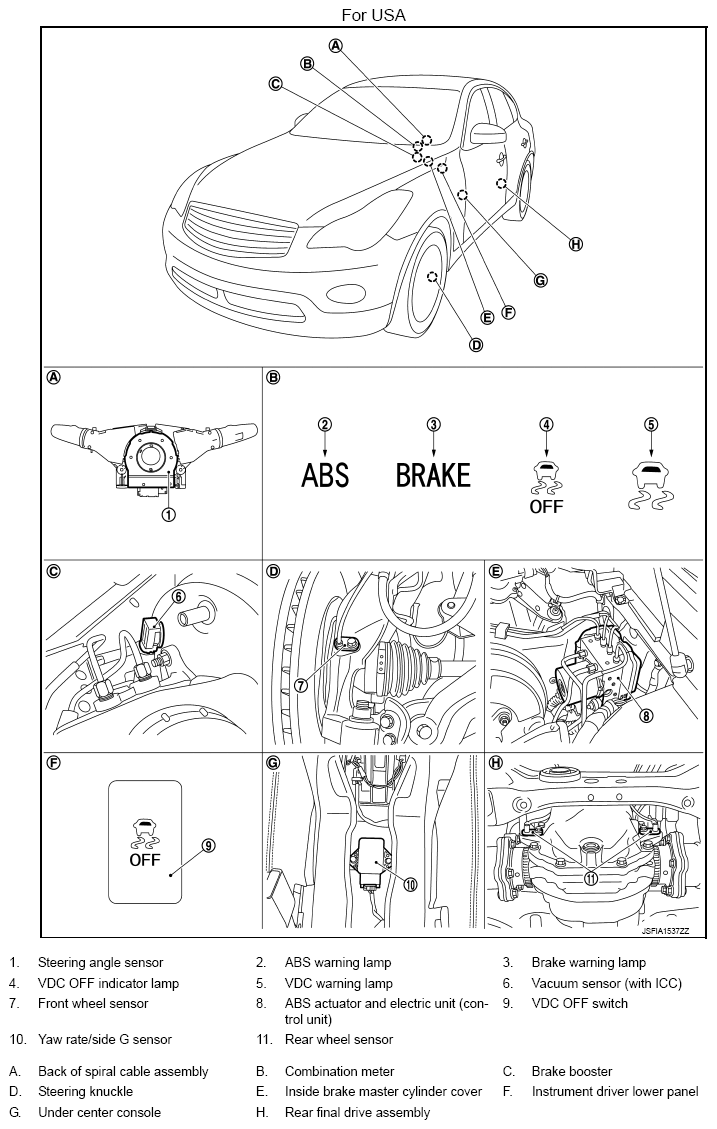

Fig 1: VDC Component Parts Location (USA)
Courtesy of NISSAN NORTH AMERICA, INC.

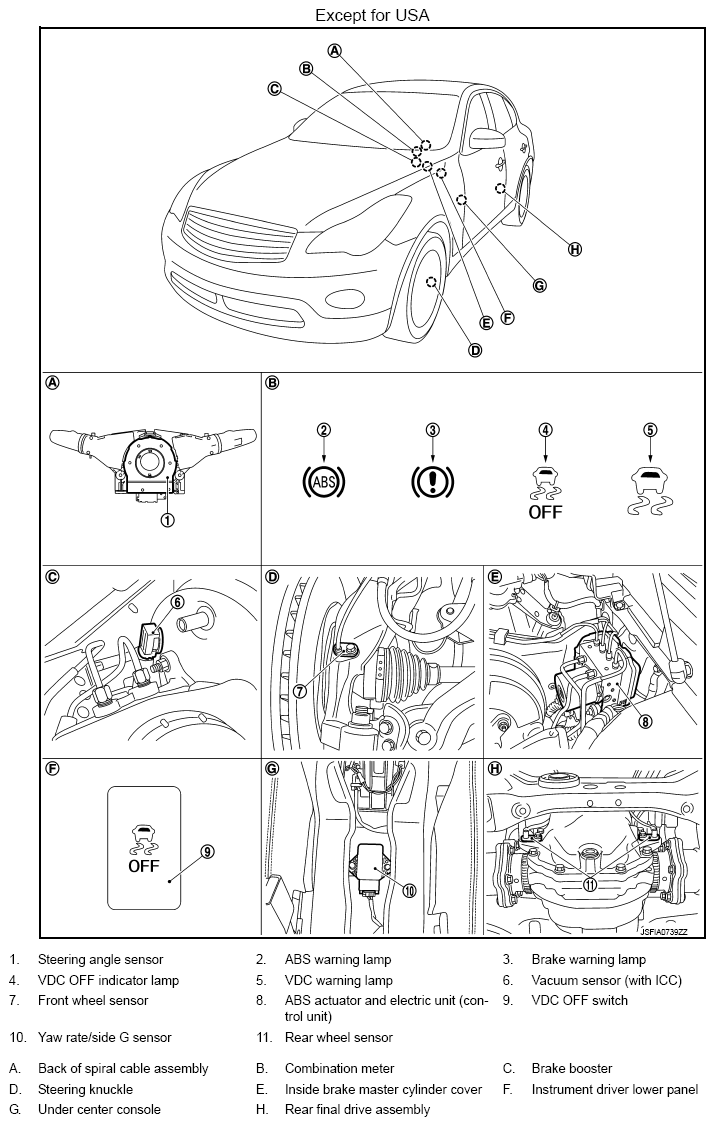

Fig 2: VDC Component Parts Location (Except USA)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
