LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2013
>>
EX37 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Rear Door Glass
>>
Exploded View
Exploded View

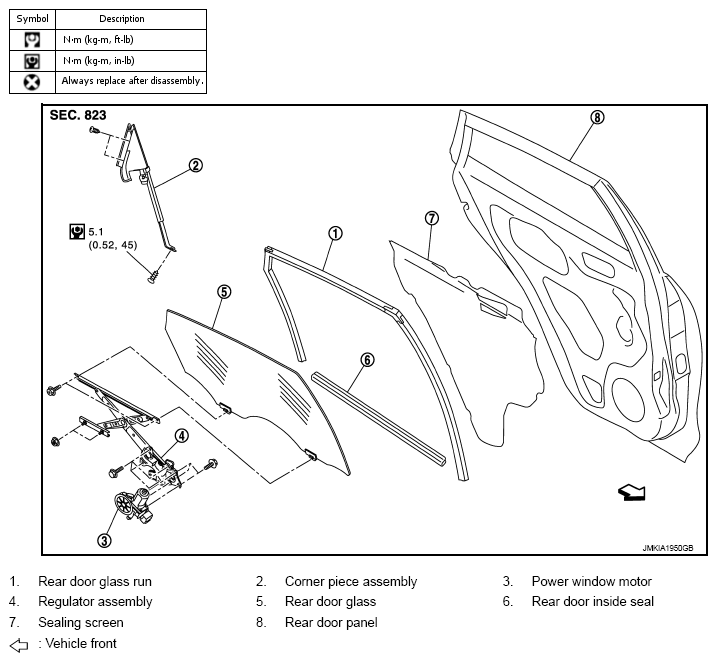

Fig 1: Exploded View Of Rear Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
