Home
>>
Infiniti
>>
2013
>>
EX37 Base, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Mirrors
>>
[With ADP]
>>
Removal And Installation
>>
Outside Mirror
>>
Exploded View
Exploded View

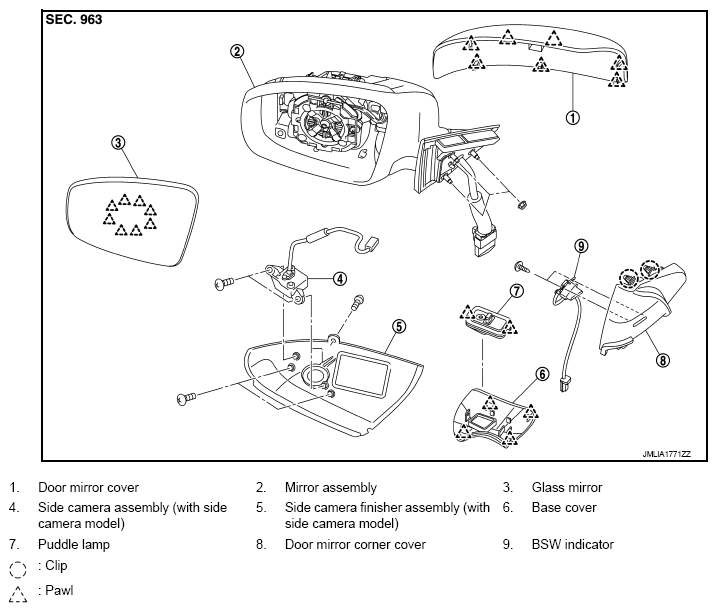

Fig 1: Exploded View Of Outside Mirror
Courtesy of NISSAN NORTH AMERICA, INC.

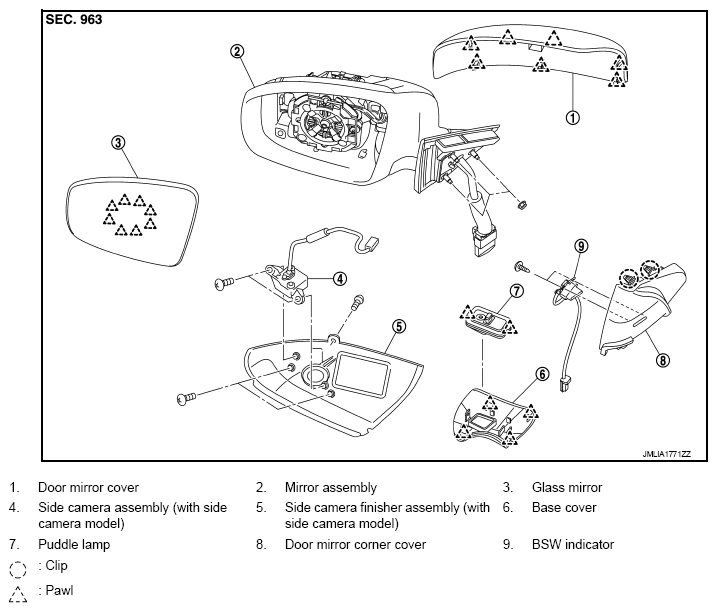

Fig 1: Exploded View Of Outside Mirror
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
