Infiniti
>>
2013
>>
EX37 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Suspension
>>
Wheel Alignment
>>
Rear Suspension
>>
Removal And Installation
>>
Radius Rod
>>
Exploded View
Exploded View
Refer to "
COMPONENTS
" for symbols in the figure.

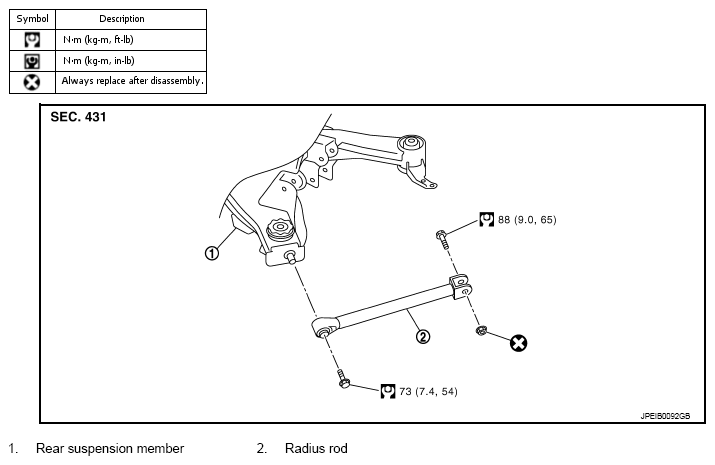

Fig 1: Exploded View Of Radius Rod With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
