Exploded View

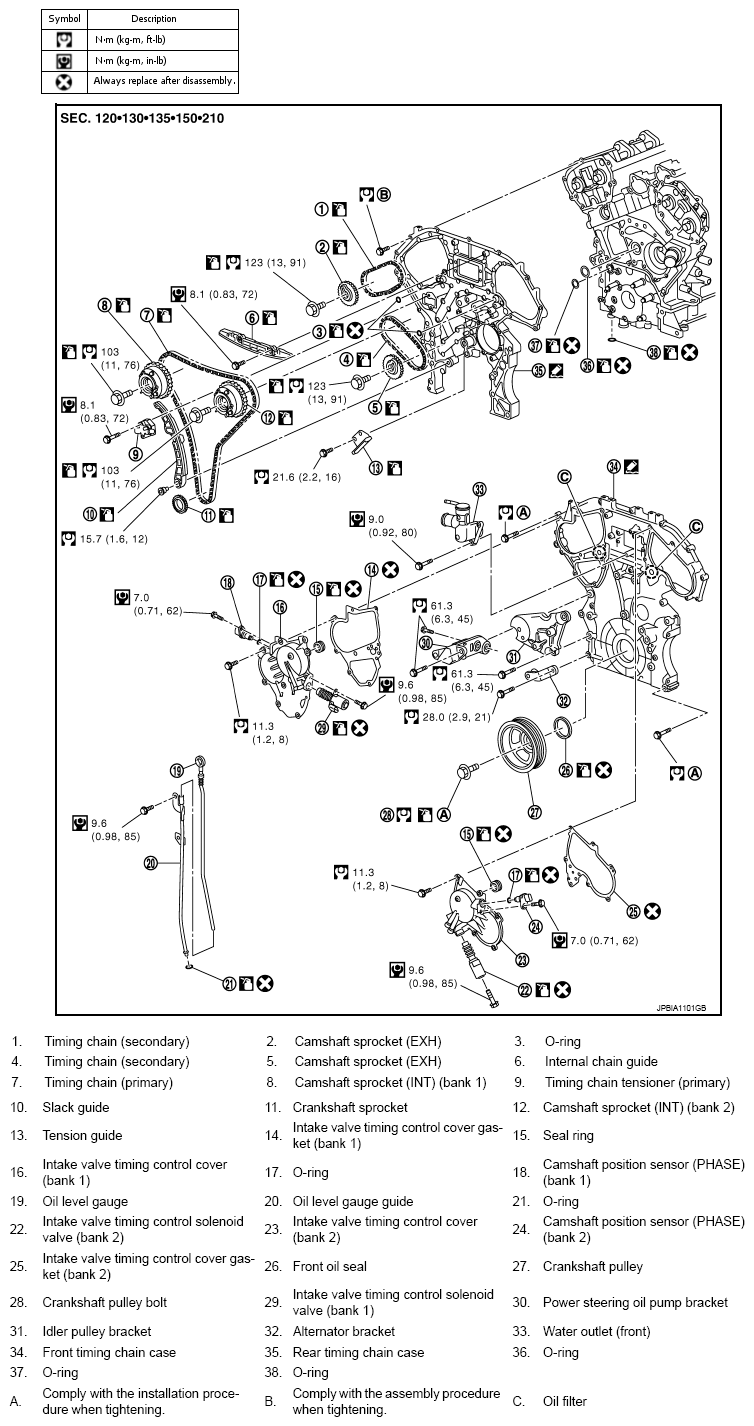

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G08985348

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol marks in the figure.
