Home >> Infiniti >> 2013 >> EX37 Base, AWD >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Brake Control System (VDC/TCS/Abs) >> System Description >> Abs >> System Diagram

System Diagram

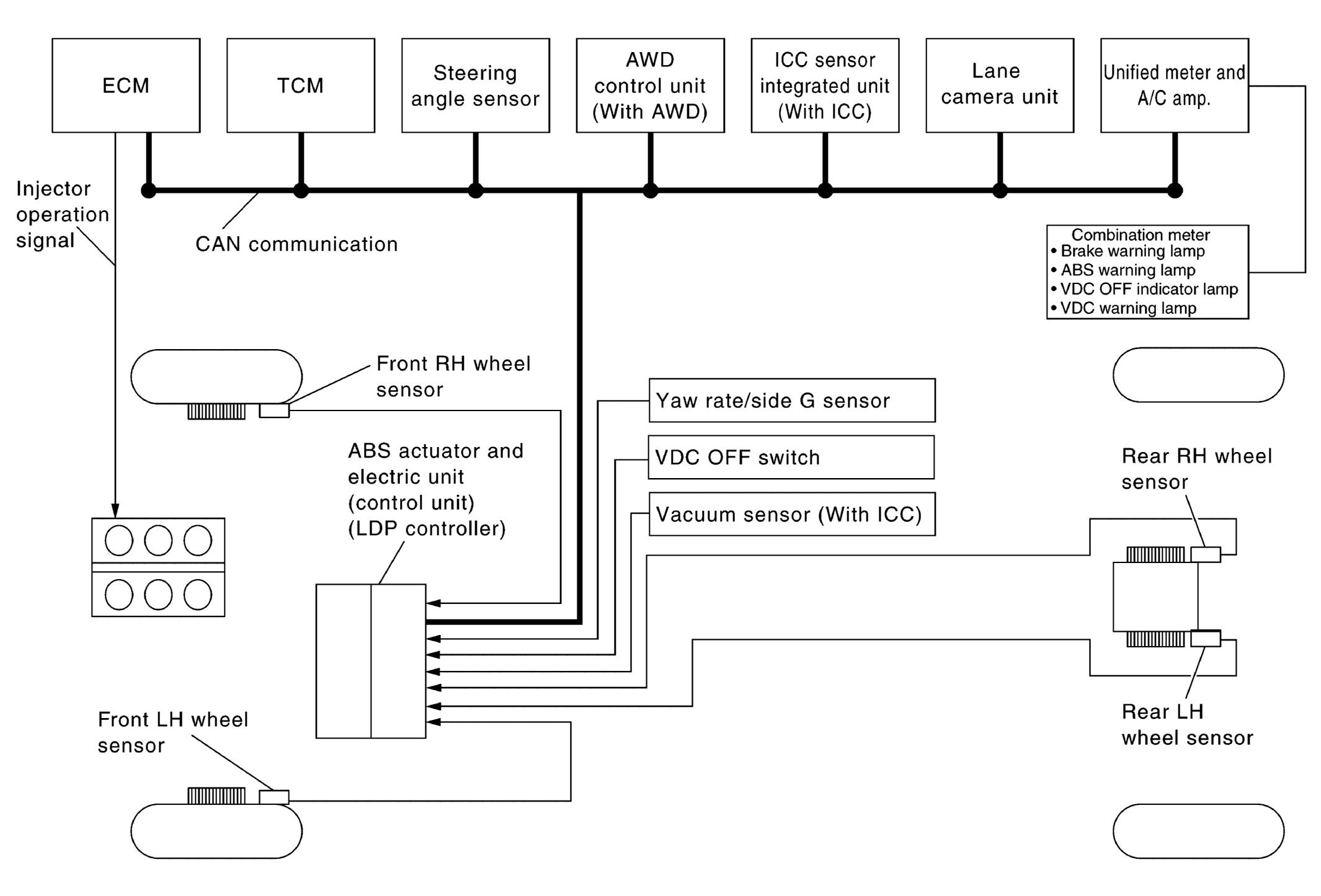

Fig 1: ABS System Diagram (With LDP)

G08993890

Courtesy of NISSAN NORTH AMERICA, INC.

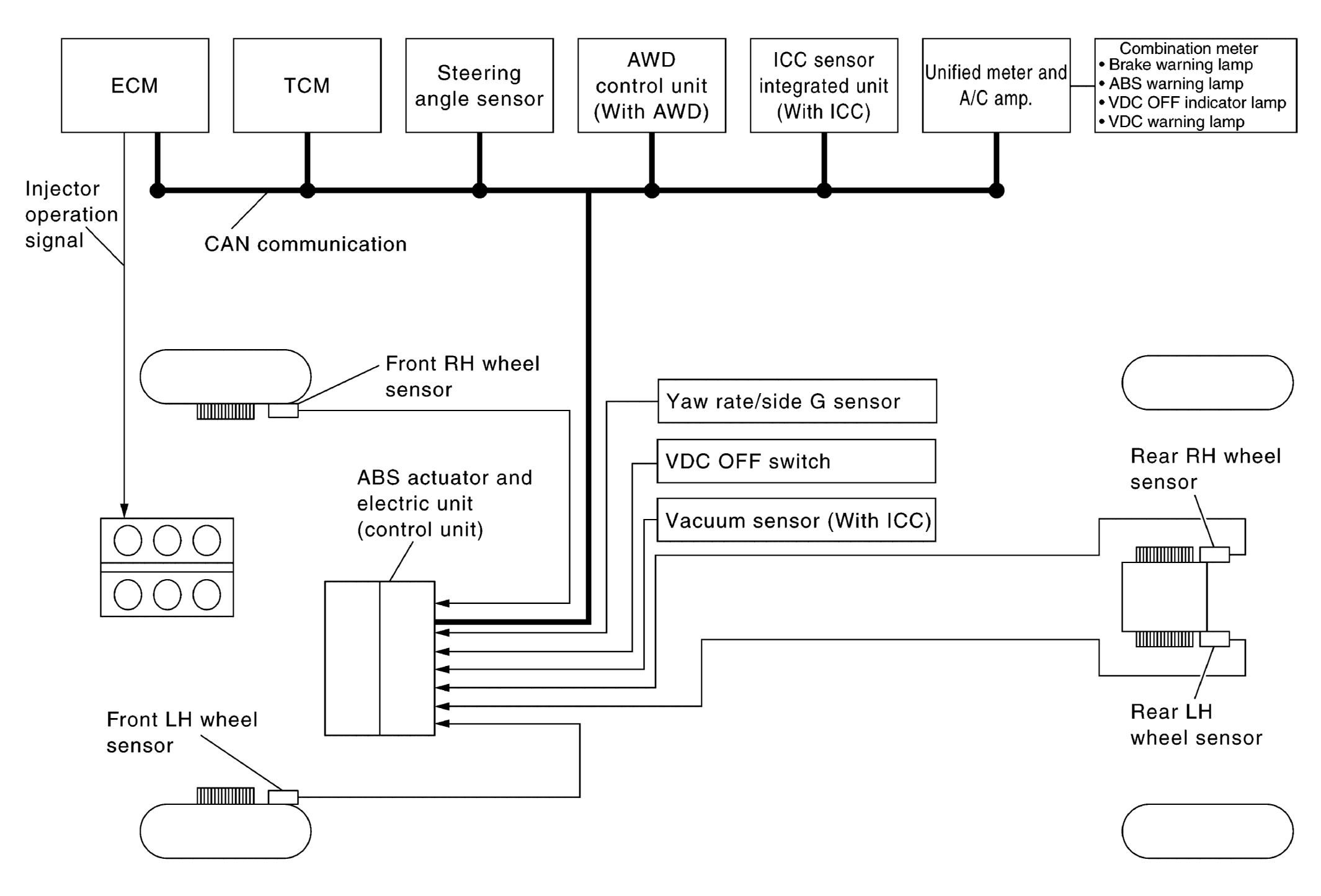

Fig 2: ABS System Diagram (Without LDP)

G08993891

Courtesy of NISSAN NORTH AMERICA, INC.
