Exploded View

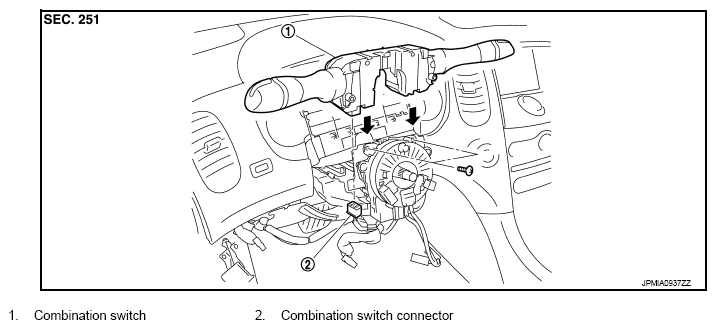

Fig 1: Identifying Combination Switch And Connector
G08997960Courtesy of NISSAN NORTH AMERICA, INC.
