Wheel Alignment: Adjustment: Toe-In

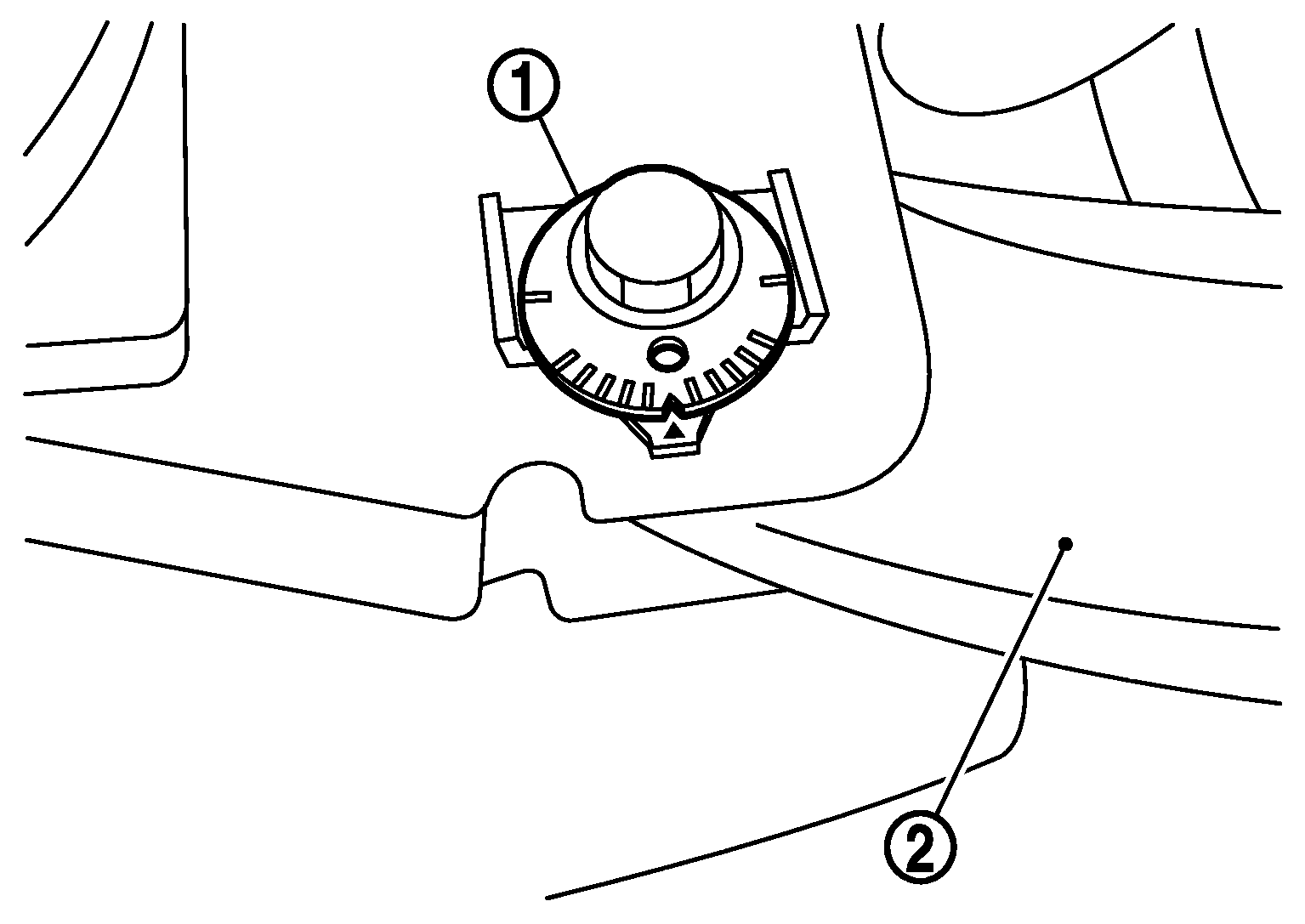

Adjust with adjusting bolt (1) in rear lower link (2).
Toe-In: Refer to "WHEEL ALIGNMENT ".
CAUTION:
- Be sure to adjust equally on right and left side with adjusting bolt.
- When tightening the nut firmly and checking the torque, use a wrench to prevent the turning of bolt.
- If toe-in is not still within the specification, inspect and replace any damaged or worn suspension parts.
- After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to "WORK PROCEDURE ".
