Component Parts
>>
Component Parts Location
Component Parts Location

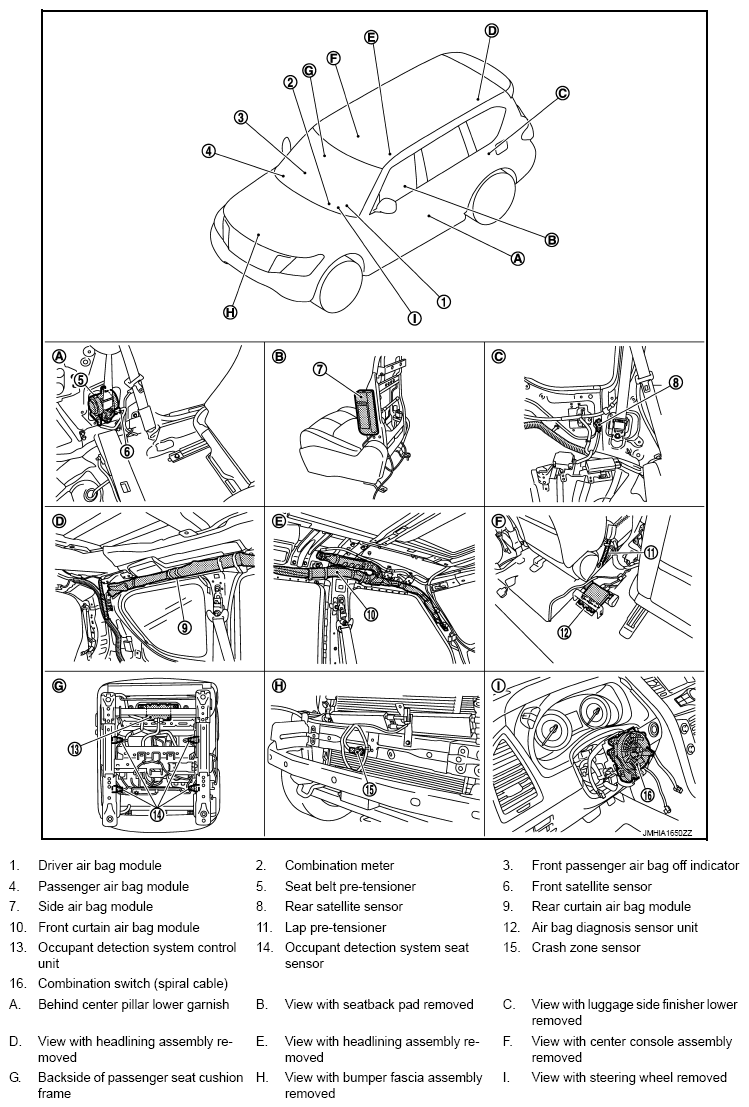

Fig 1: SRS Airbag Control System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
