Mass Air Flow Sensor Connector End View (F31)

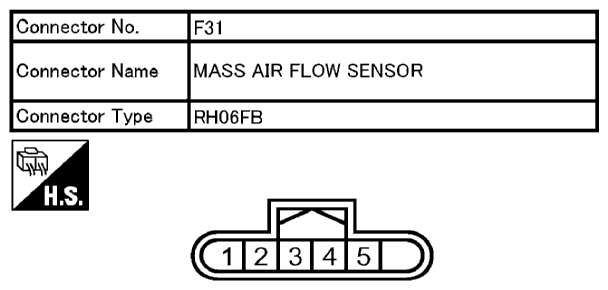

Fig 1: Mass Air Flow Sensor Connector End View (F31)

G10692865

Courtesy of NISSAN NORTH AMERICA, INC.
