Removal and Installation: Installation

Note the following, and install in the reverse order of removal:

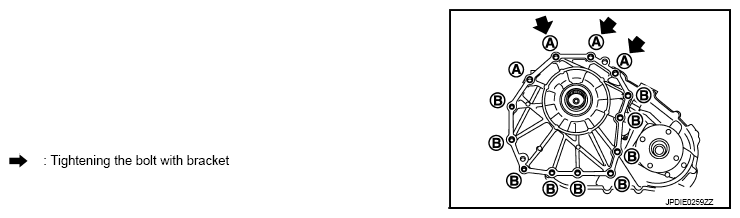

When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque:

Bolt symbol	A	B
Insertion direction	Transfer to transmission	Transmission to transfer

Fig 1: Locating Transfer To Transmission Mounting Bolts

Courtesy of NISSAN NORTH AMERICA, INC.

When installing transfer breather hose assembly, check that there are no bend and twist on the transfer breather hose.

Align paint marks (A) to connect breather hoses (1), (2), and (3) with breather connectors (4) in numerical order as shown in the figure.
Align arrow mark (B) of breather (5) with mark "C" of breather hose.

Fig 2: Identifying Breather Hose Connections With Mark
Courtesy of NISSAN NORTH AMERICA, INC.

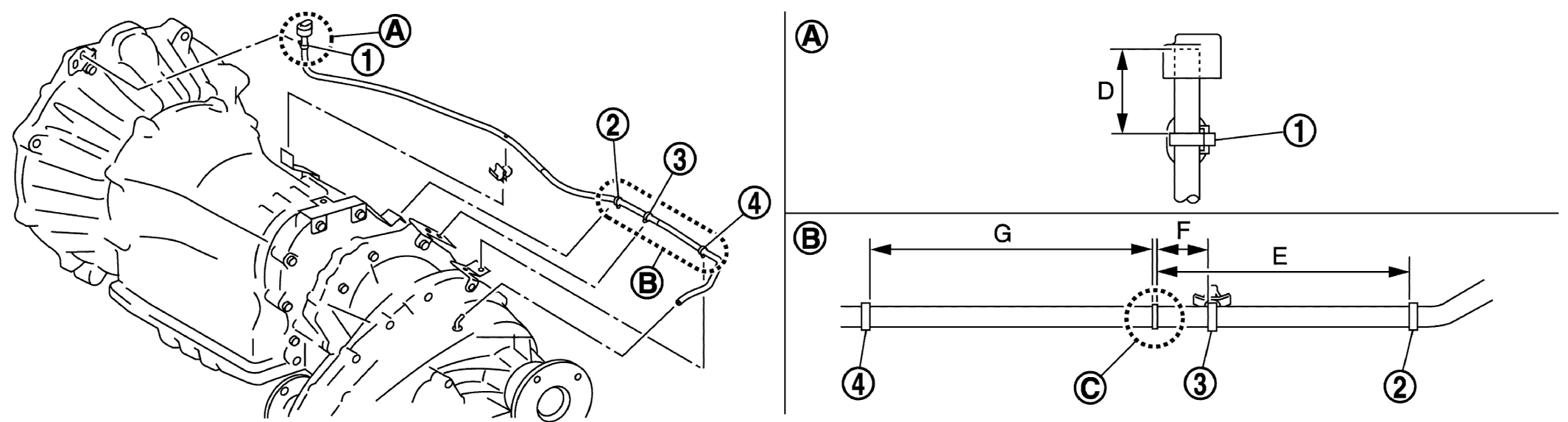

Install hose clip (1) to the position where the distance from the breather side hose end is dimension "D." Install hose clip (2), (3), and (4) to the positions where the distance from breather hose joint (C) is dimension "E," "F," and "G," respectively, as shown in the figure.

Fig 3: Identifying Breather Hose Joint Dimensions
Courtesy of NISSAN NORTH AMERICA, INC.

Dimension

D: 26.3 mm (1.035 in)

E: 121.7 mm (4.791 in)

F: 25.0 mm (0.984 in)

G: 143.0 mm (5.630 in)

CAUTION:

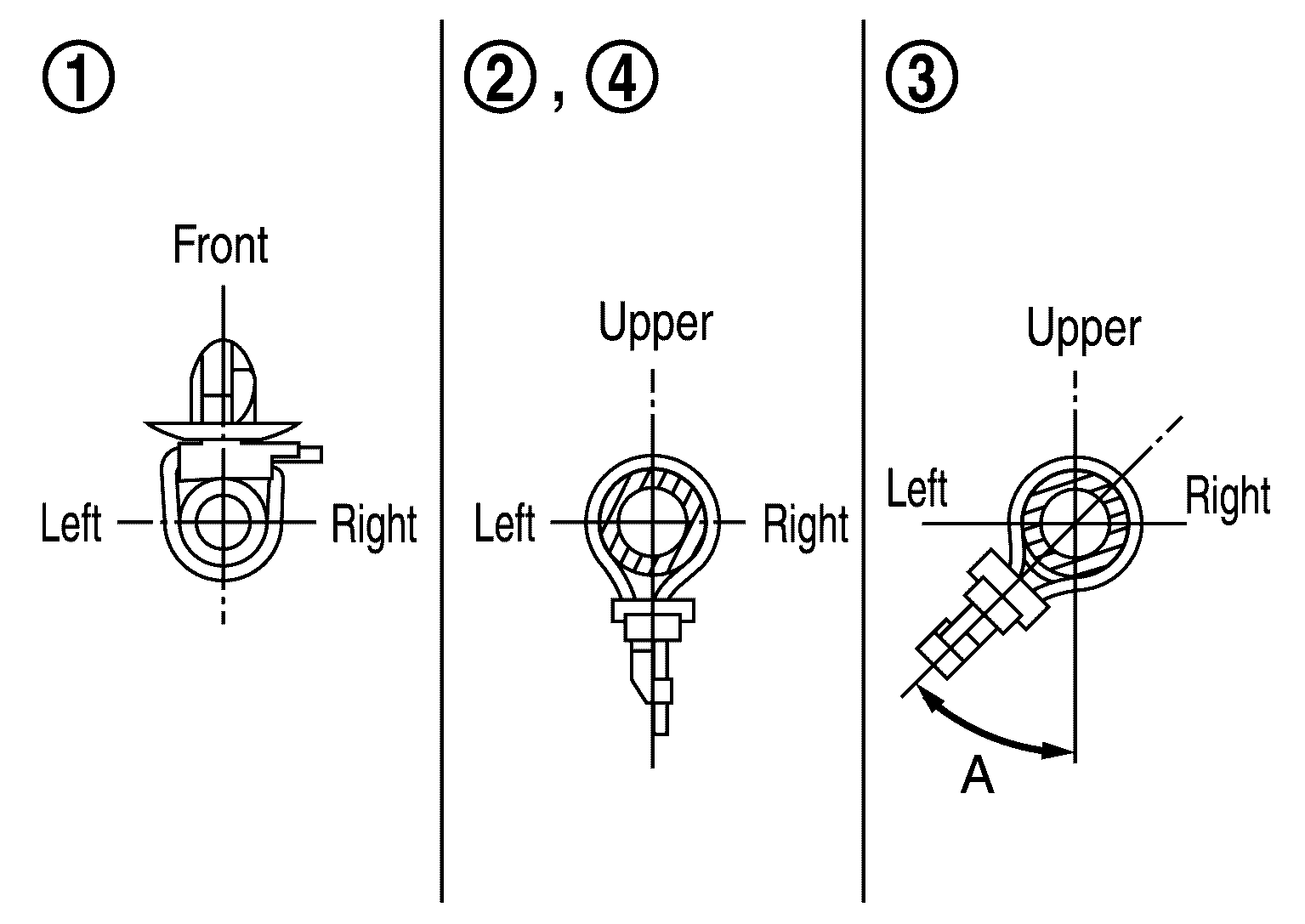

To install hose clips (1), (2), (3), and (4), observe the angle/orientation shown in the figure.
Angle A: 45° ± 15°

Fig 4: Identifying Breather Hose Angle/Orientation
Courtesy of NISSAN NORTH AMERICA, INC.
Never reuse hose clip
After tightening band of clip, cut the extra part.

Transmission side hose end

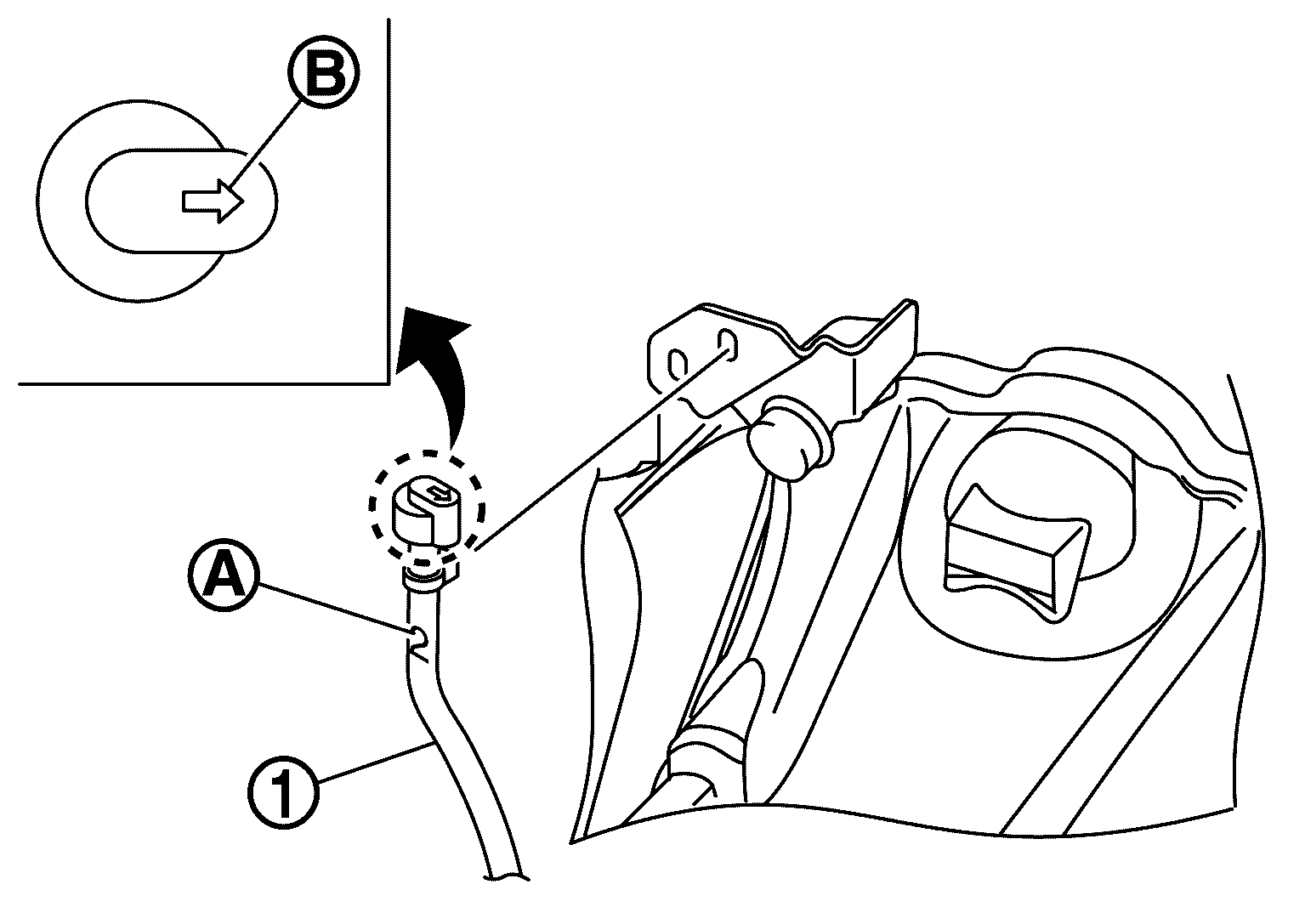

Install the transfer breather hose (1) with the paint mark (A) faced backward and the arrow mark (B) faced rightward as shown in the figure.

Fig 5: Identifying Transmission Side Hose End With Arrow Mark
Courtesy of NISSAN NORTH AMERICA, INC.

Transfer side hose end

Install the transfer breather hose (1) with the paint mark (A) faced upward, and insert breather hose to breather tube (2) until dimension (B) shown in the figure as follows:
B: 20 mm (0.79 in)

Fig 6: Identifying Breather Hose To Breather Tube Insertion Dimension
Courtesy of NISSAN NORTH AMERICA, INC.

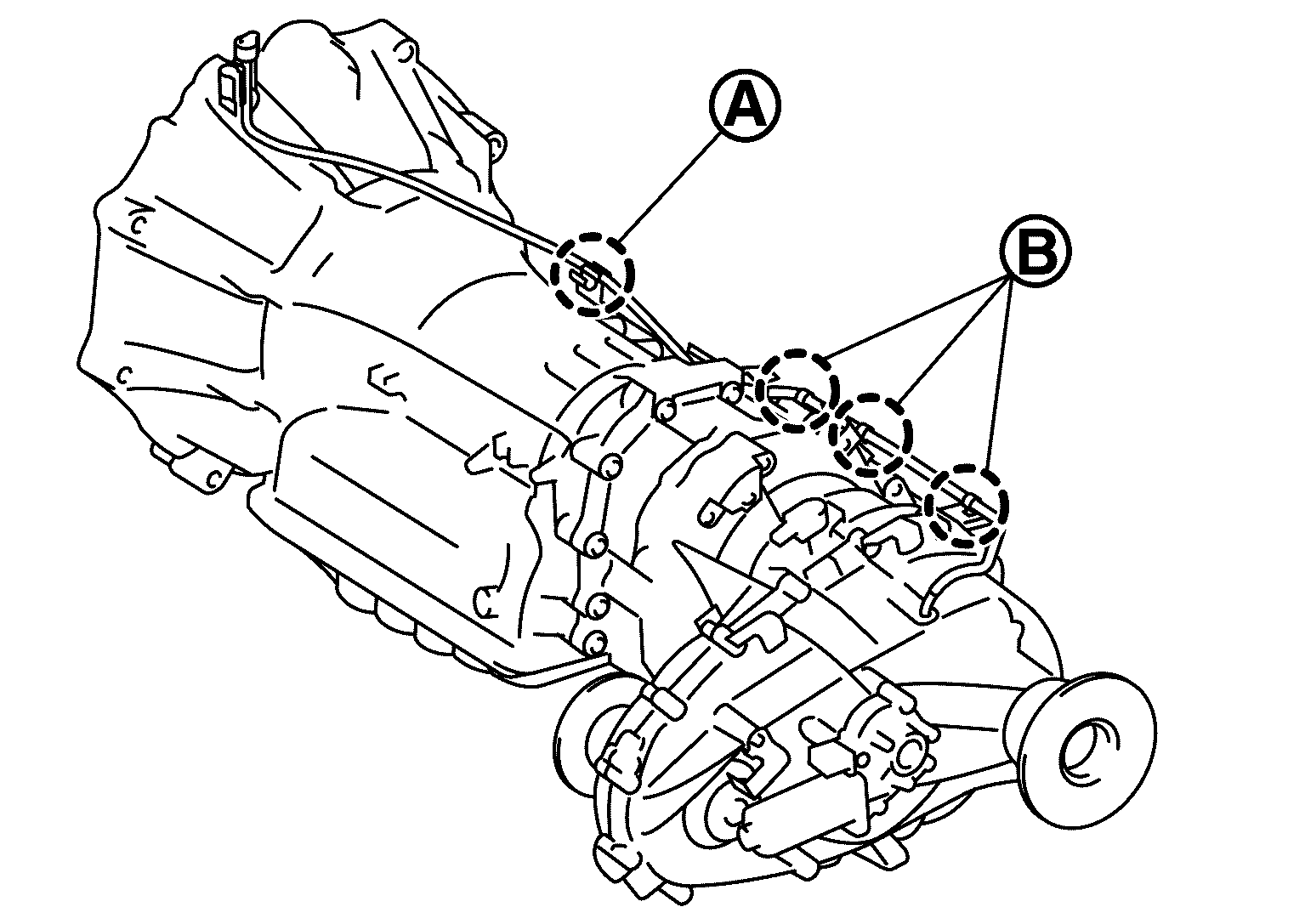

Fix breather hose in (A) and (B) positions. For (A), face the paint mark upward.

Check oil level and check for oil leakage after installation. Refer to "INSPECTION ".
If replacing transfer assembly, perform writing unit parameter, learning of fluid viscosity and initial calibration. Refer to "WORK PROCEDURE ".

Fig 7: Identifying Breather Hose Positions
Courtesy of NISSAN NORTH AMERICA, INC.
