Transfer Fluid: Refilling

Remove filler plug (1). Fill up with new transfer fluid up to mounting hole for the filler plug.
Fluid grade and Viscosity: Refer to "FOR NORTH AMERICA: FLUIDS AND LUBRICANTS " (for NORTH AMERICA), "FOR MEXICO: FLUIDS AND LUBRICANTS " (for MEXICO).

Fluid capacity: Refer to "GENERAL SPECIFICATIONS ".

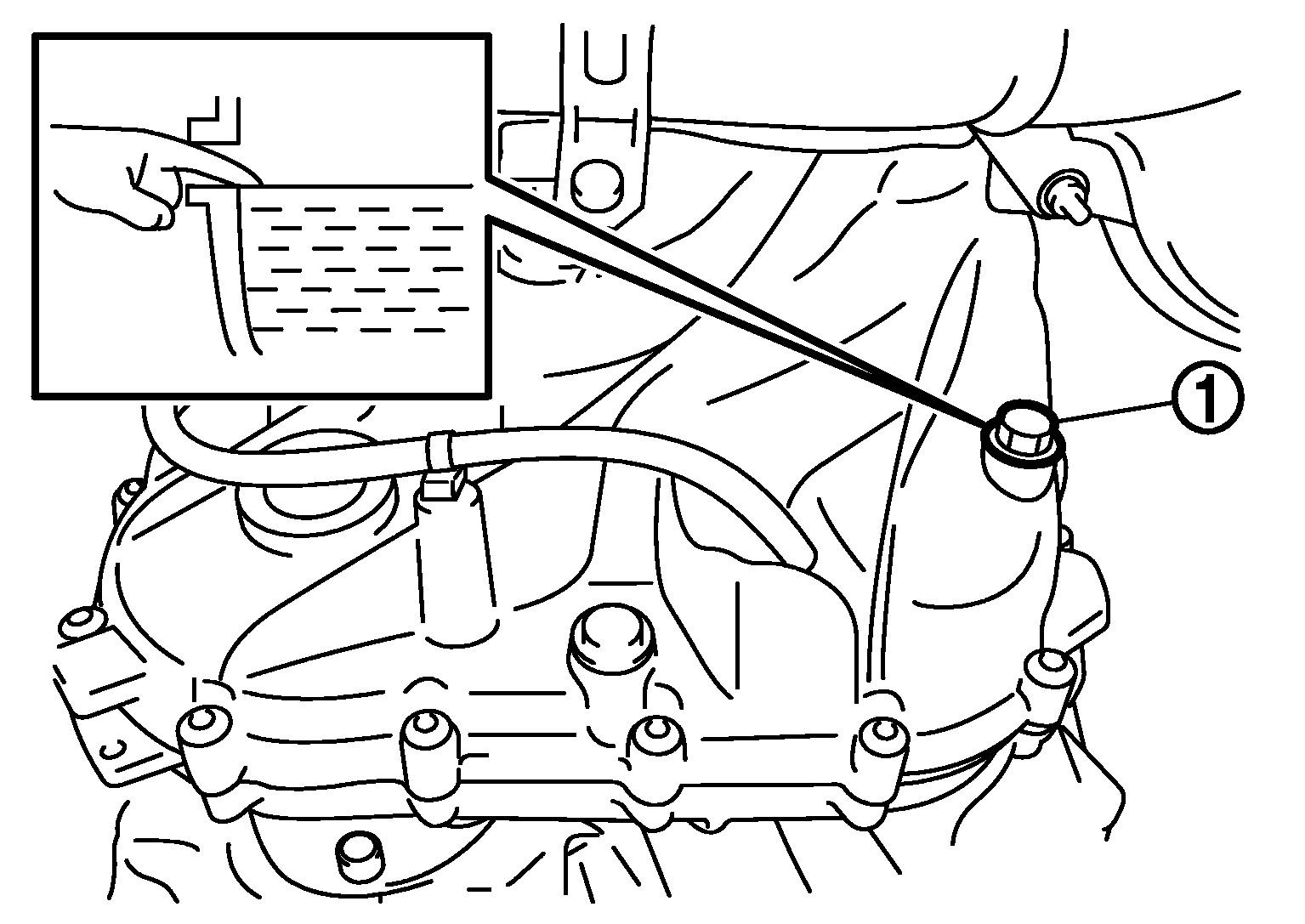

Fig 1: Checking Transfer Fluid Level From Filler Plug Mounting Hole
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Carefully fill the fluid. (Fill up for approximately 3 minutes.)
Leave the vehicle for 3 minutes, and check the fluid level again.
Set a new gasket onto filler plug, and install it on transfer and tighten to the specified torque.
Specified torque: 48 N.m (4.9 kg-m, 35 ft-lb)

CAUTION: Never reuse gasket.
Perform learning of transfer fluid viscosity. Refer to "WORK PROCEDURE ".
