TRANSMISSION: Cross-Sectional View
>>
2WD Models
2WD Models

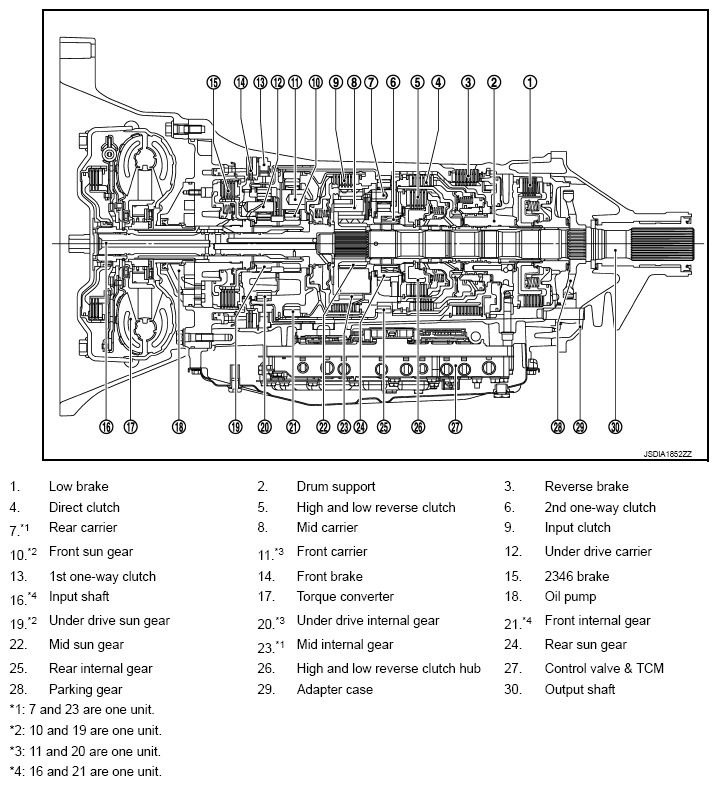

Fig 1: Cross-Sectional View Of Transmission (2WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
