Exploded View
>>
Removal
Exploded View: Removal

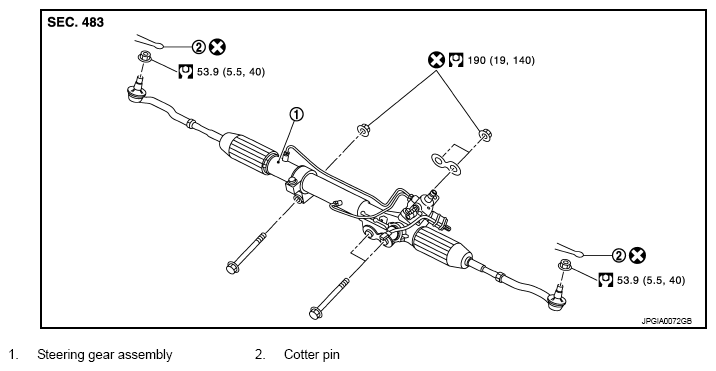

Fig 1: Steering Gear Assembly And Cotter Pin With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
