Pantograph Jack

WARNING:
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.

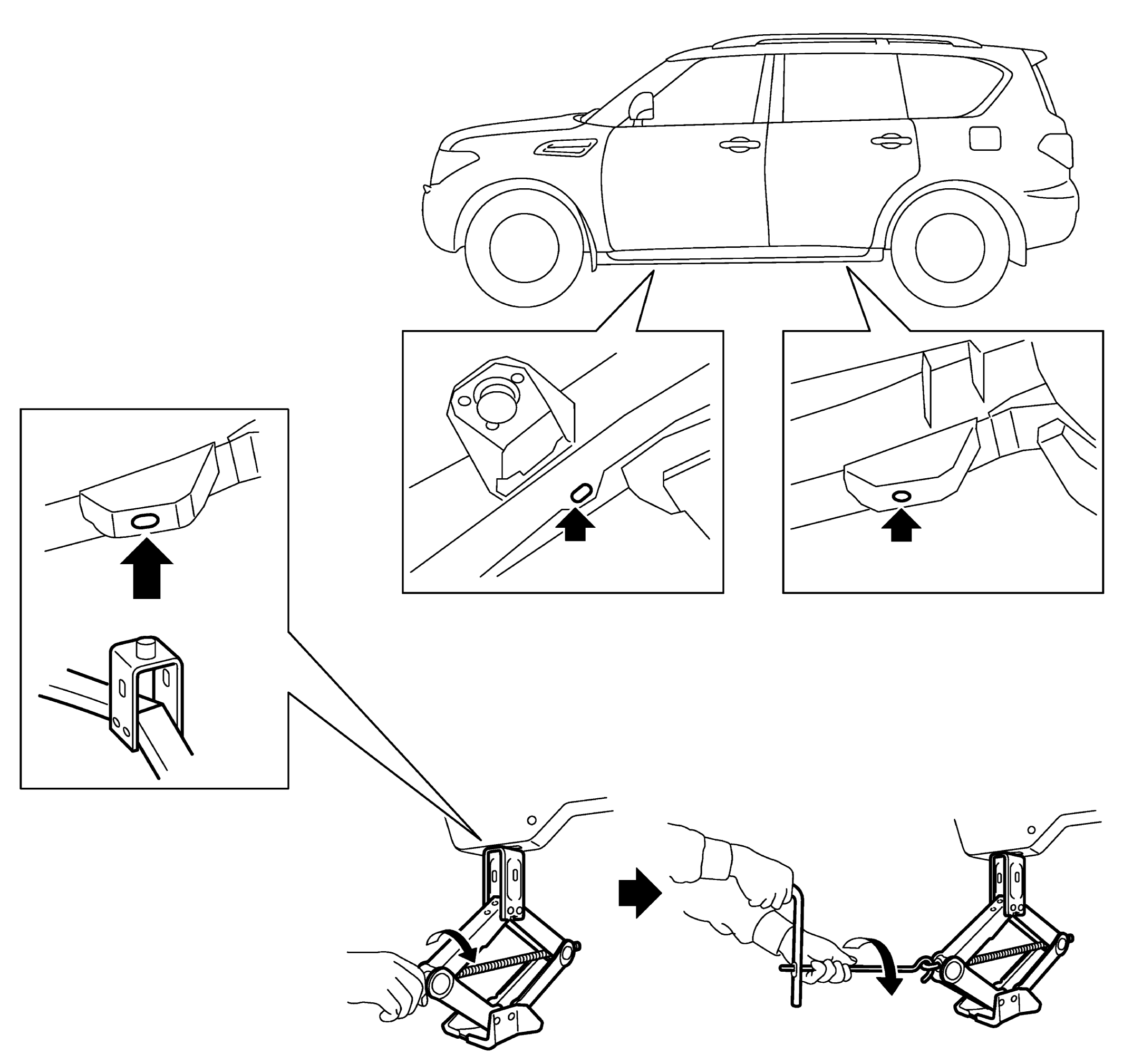

Fig 1: Identifying Lifting Points (Pantograph Jack)
G07024854Courtesy of NISSAN NORTH AMERICA, INC.
