Valve Lift Operation

Rotational movement of the drive shaft equipped with eccentric cam is transmitted to output cam via the rocker arm and two kinds of links to depress the intake valve.

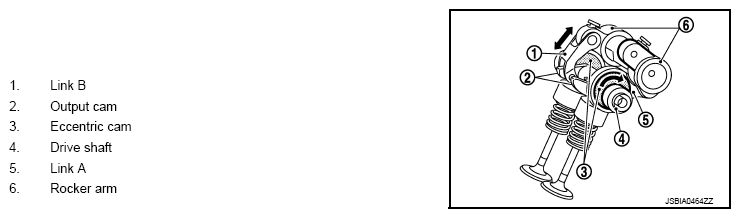

Fig 1: Rotating Drive Shaft
G08256991Courtesy of NISSAN NORTH AMERICA, INC.
