Removal and Installation: Removal

  1. Remove the battery and battery tray. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect ECM harness connectors (1) as shown in the figure.
  3. Remove ECM bracket bolts (A).
  4. Separate ECM (2) and ECM bracket (3).

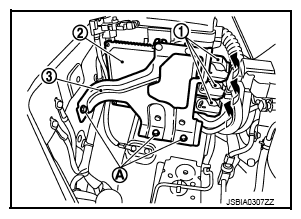

    Fig 1: ECM, Harness Connectors, Bracket And Bolts
    G08260273Courtesy of NISSAN NORTH AMERICA, INC.
