SRT Status Mode

Description

This function allows to read if ECM has completed the self-diagnoses of major emission control systems and components. For SRT, refer to "DIAGNOSIS DESCRIPTION: SYSTEM READINESS TEST (SRT) CODE ".

Operation Procedure

1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown below.

• ECM continues to illuminate MIL if all SRT codes are set.
• ECM blinks MIL for about 10 seconds if all SRT codes are not set.

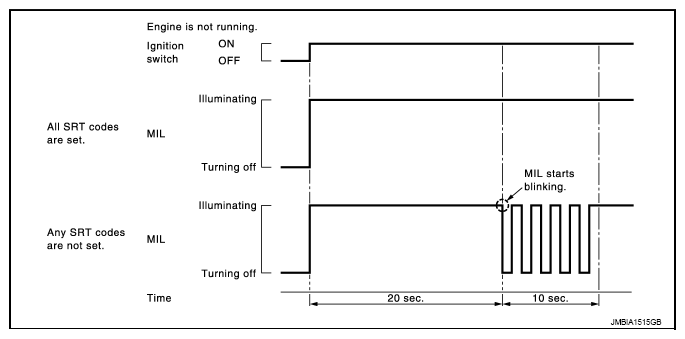

  Fig 1: SRT Status Blinking Pattern

  Courtesy of NISSAN NORTH AMERICA, INC.
