Infiniti
>>
2012
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (Intelligent Brake Assist)
>>
System Description
>>
Component Parts
>>
Component Parts Location
Component Parts Location

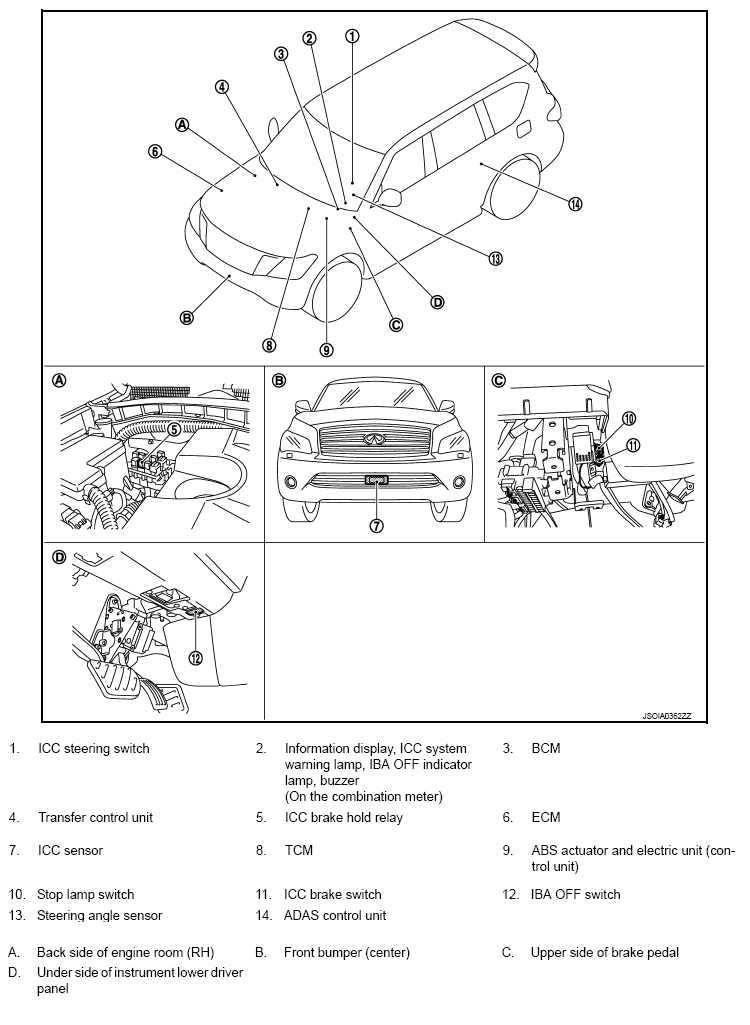

Fig 1: Brake Control System (Intelligent Brake Assist) Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
