SHIFT CHANGE CONTROL: System Diagram

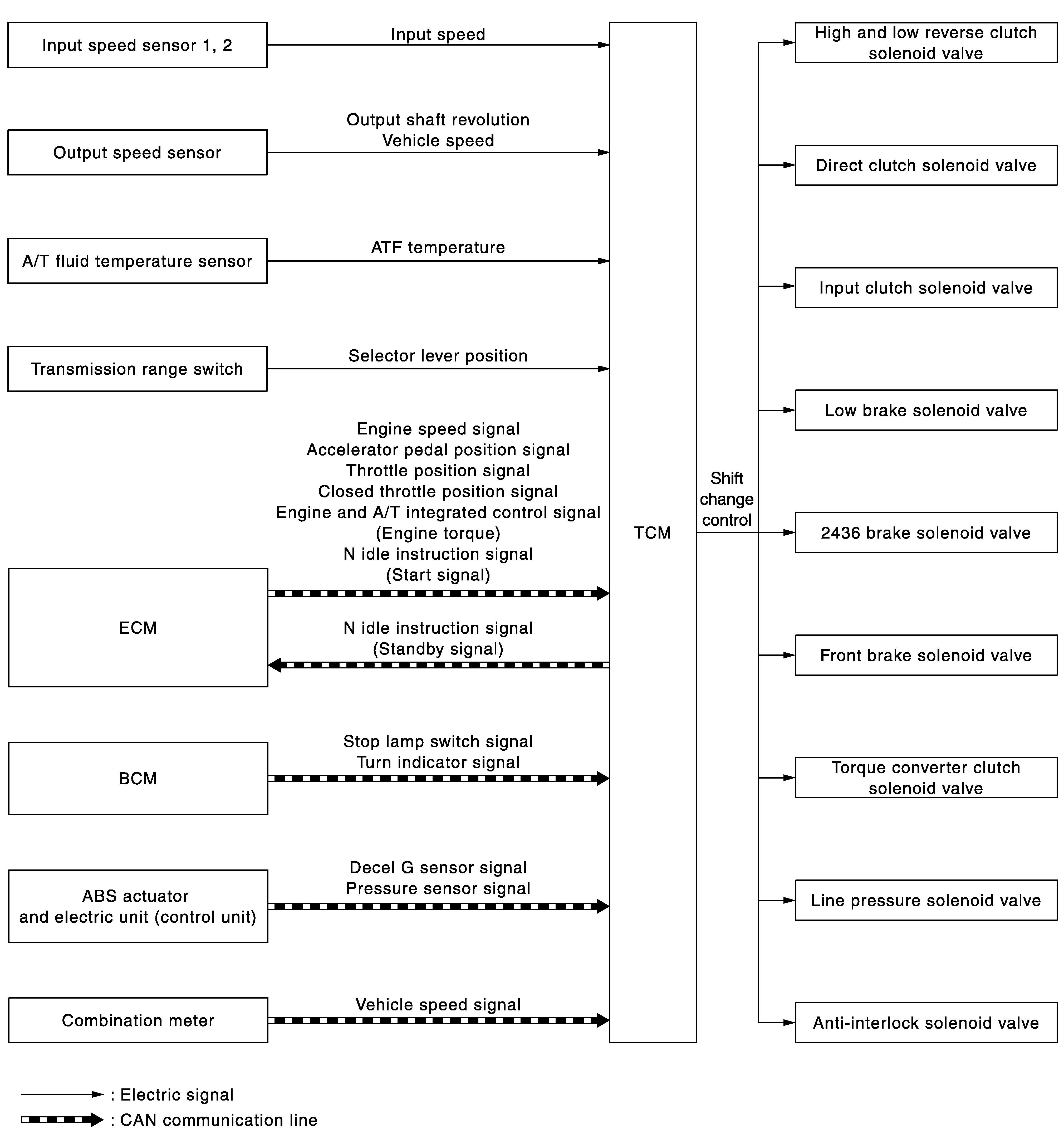

Fig 1: Shift Change Control System Diagram

G07018738

Courtesy of NISSAN NORTH AMERICA, INC.
