LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2012
>>
M37 x
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Symptom Diagnosis
>>
System Symptom
>>
Symptom Table
>>
Symptom Table 1
Symptom Table 1

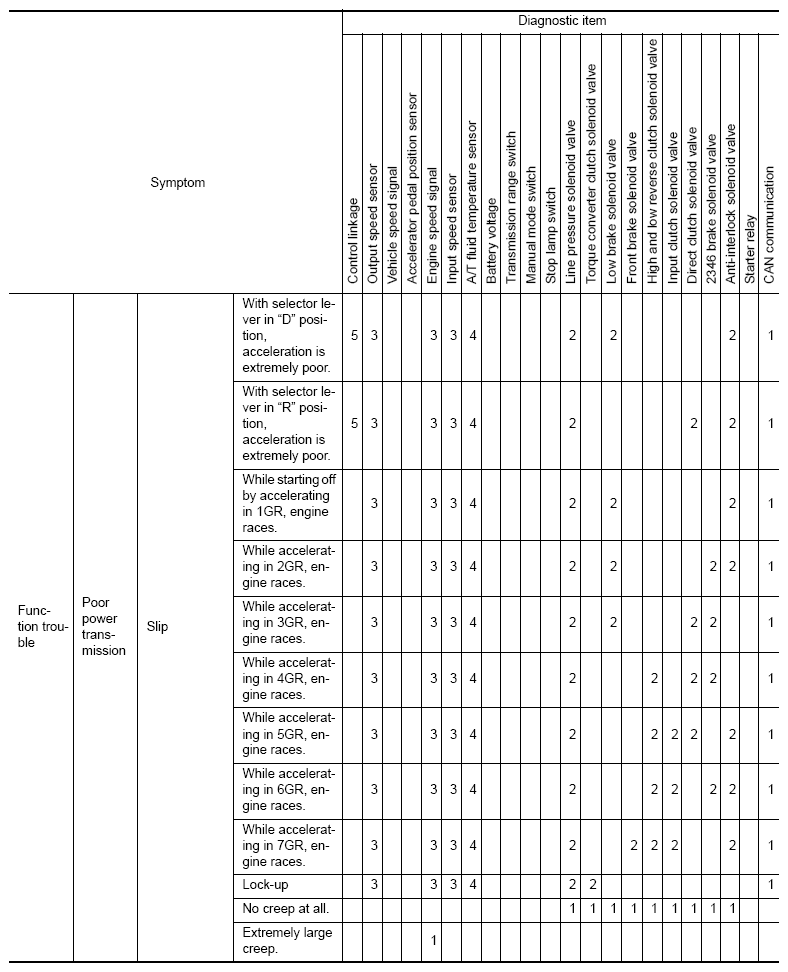

Fig 1: Symptom Table 1 (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

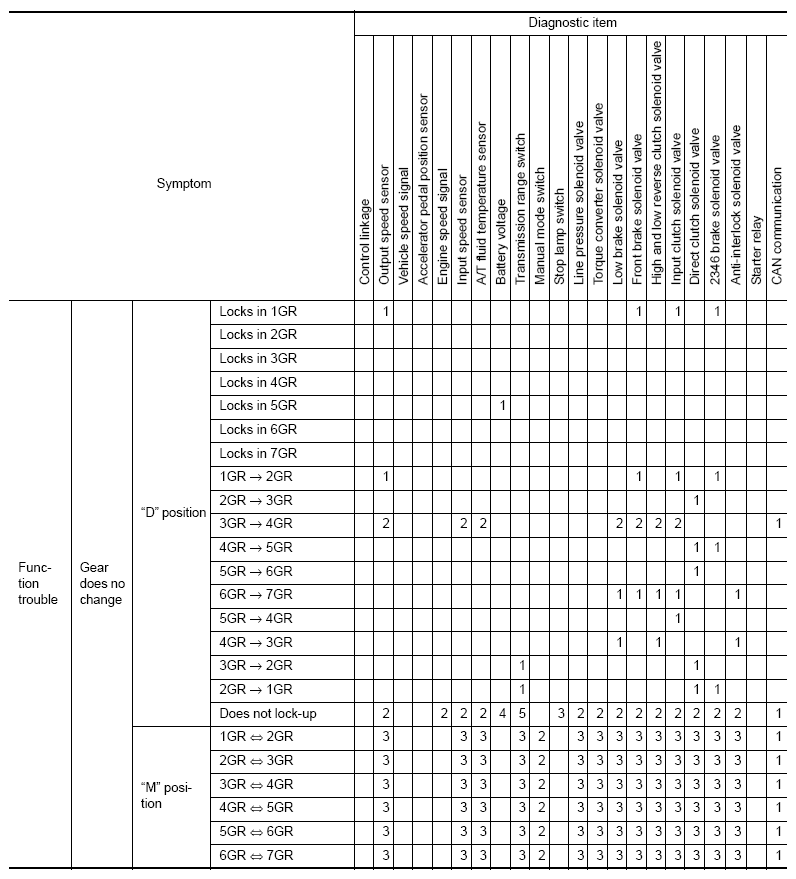

Fig 2: Symptom Table 1 (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

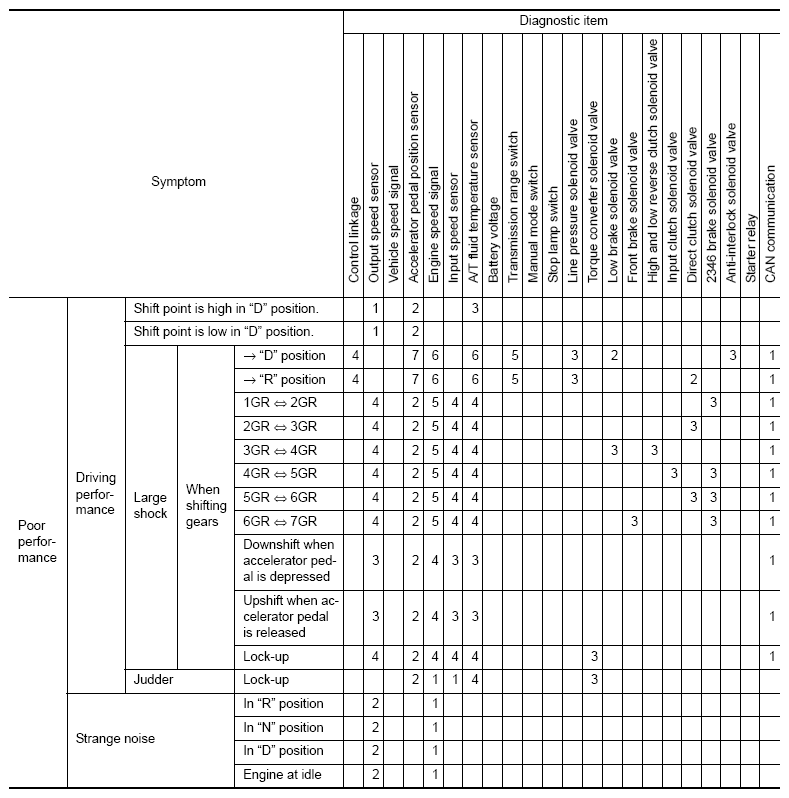

Fig 3: Symptom Table 1 (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

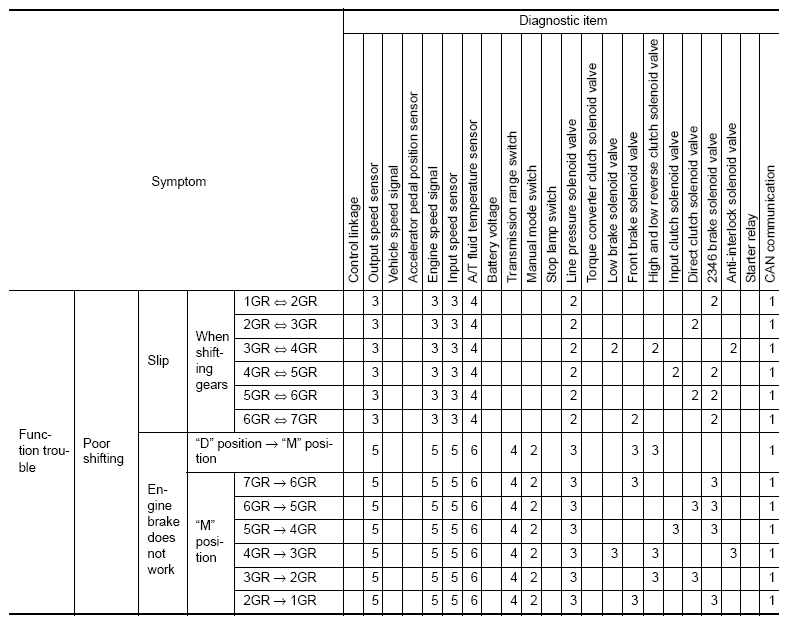

Fig 4: Symptom Table 1 (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

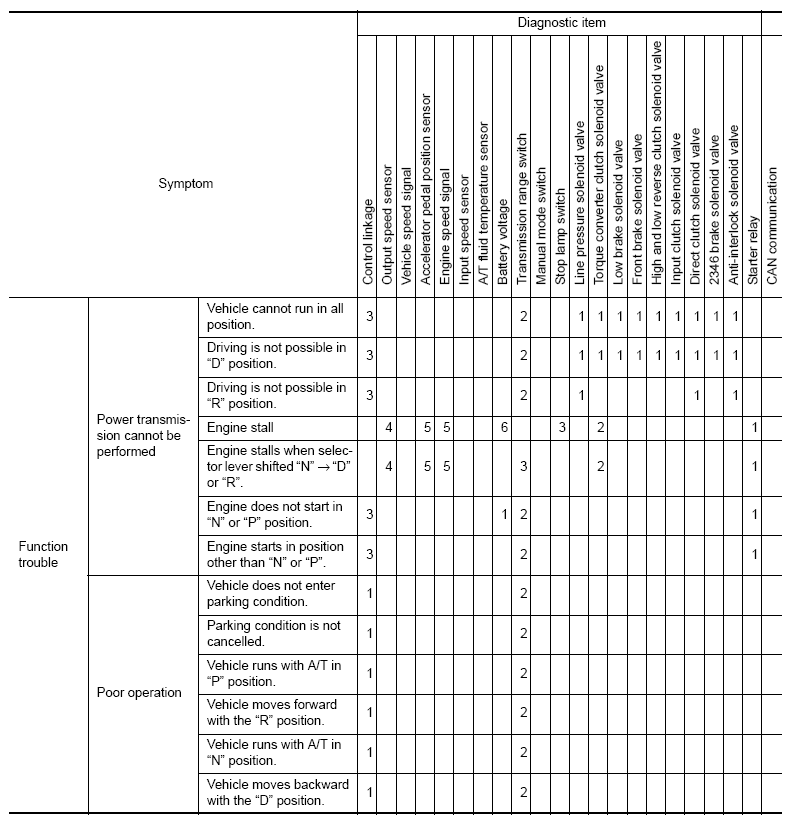

Fig 5: Symptom Table 1 (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
