Exploded View: VQ37VHR

WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.

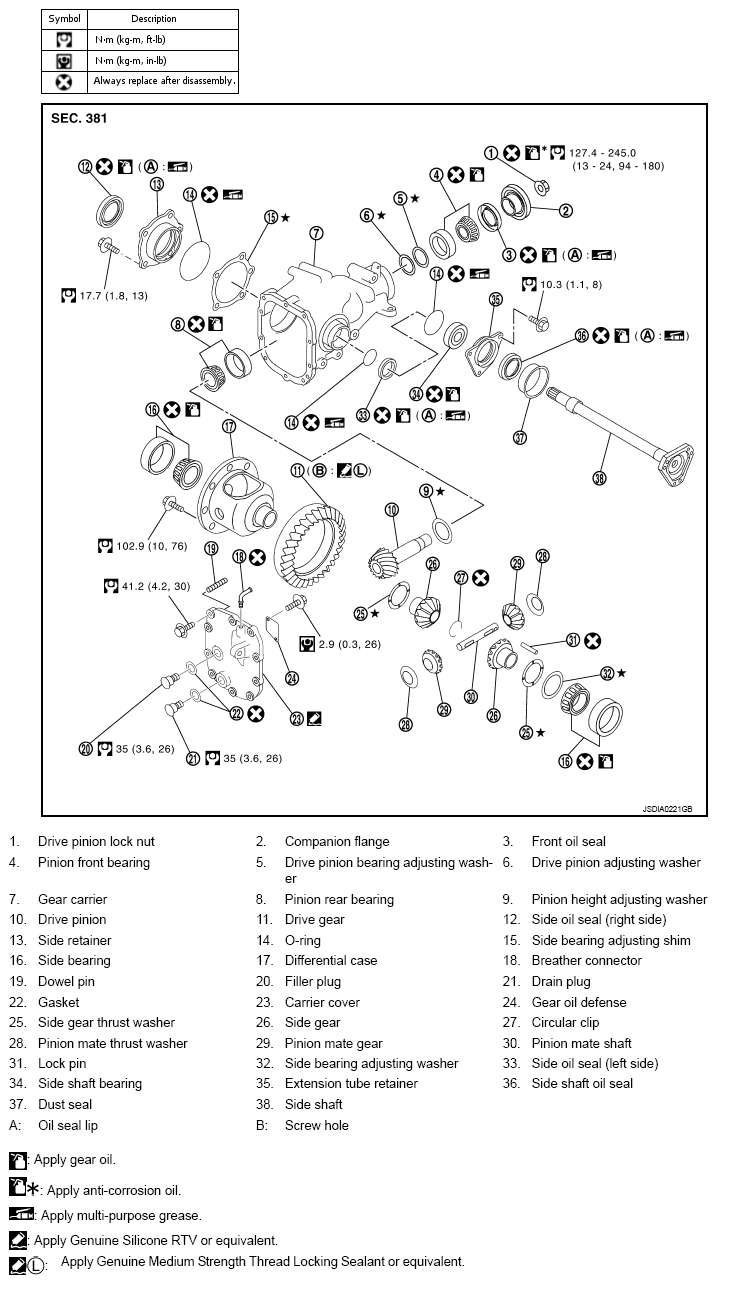

Fig 1: Exploded View Of Differential Assembly With Torque Specifications (VQ37VHR)
G08897392Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
