Refrigeration System: Component

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The new and former refrigerant connections use different O-ring configurations. Do not confuse O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or around the connection.

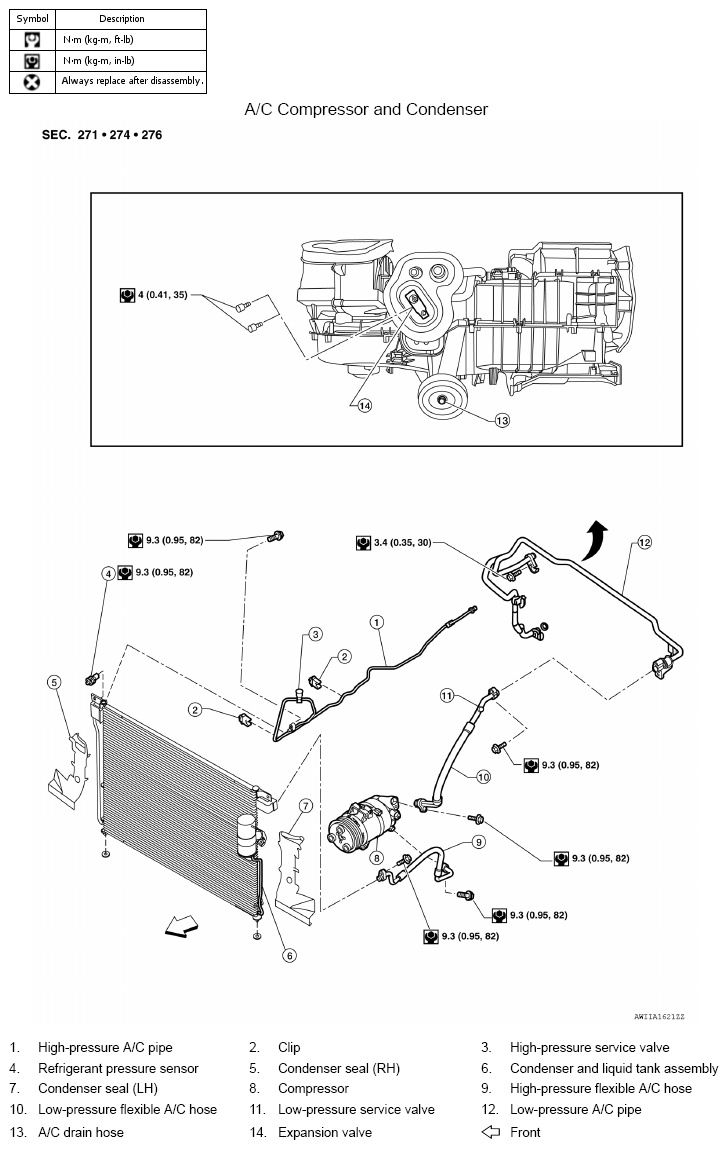

Fig 1: Exploded View Of A/C Compressor And Condenser With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
