Section 22 (Door & Lock)
>>
System Description
>>
Door Lock Function
>>
Remote Keyless Entry
>>
REMOTE KEYLESS ENTRY: System Diagram
REMOTE KEYLESS ENTRY: System Diagram
WARNING:
This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

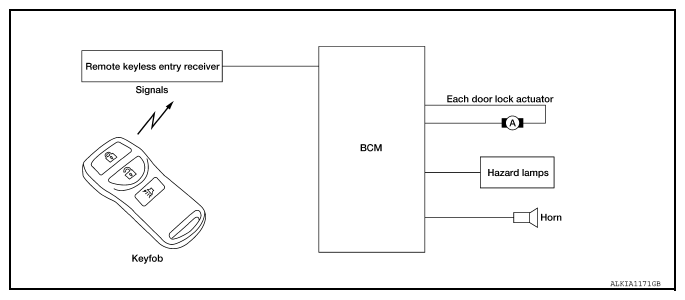

Fig 1: Remote Keyless Entry System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
