AWD: Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• Do not damage engine mounting insulator and do not spill oil on it.
• For a location with a positioning pin, insert it securely into hole of mating part.
• For a part with a specified installation orientation, refer to component figure in "AWD: EXPLODED VIEW ".
• When installing engine mounting bracket (RH and LH) on cylinder block, tighten two upper bolts [shown as (B) in the figure below] first. Then tighten two lower bolts [shown as (C) in the figure below].

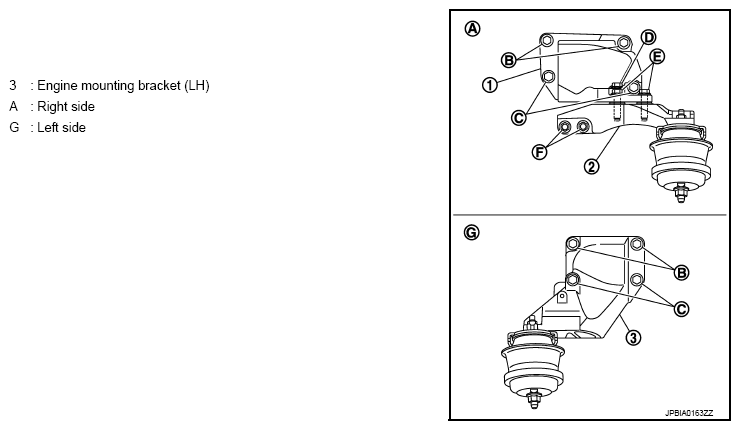

  Fig 1: Identifying Engine Mounting Bracket Upper And Lower Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.
• Install engine mounting bracket (RH) (lower) (2) as follows:
  • Temporarily tighten mounting bolts [shown as (D), (E) and (F) in the figure below].
  • Tighten mounting bolts to the specified torque with following mounting surfaces touched.
• Engine mounting bracket (RH) (1) to engine mounting bracket (RH) (lower) [shown as and in figure below].
• Front final drive to engine mounting bracket (RH) (lower) [shown as in figure below].
• Check all engine mounting insulators are seated properly, then tighten mounting nuts.
• Tighten rear engine mounting member bolts in numerical order as shown in the figure below.
  Fig 2: Rear Engine Member Bolt Tightening Sequence

  Courtesy of NISSAN NORTH AMERICA, INC.
