Front Carrier, Input Clutch, Rear Internal Gear
>>
Exploded View
Exploded View

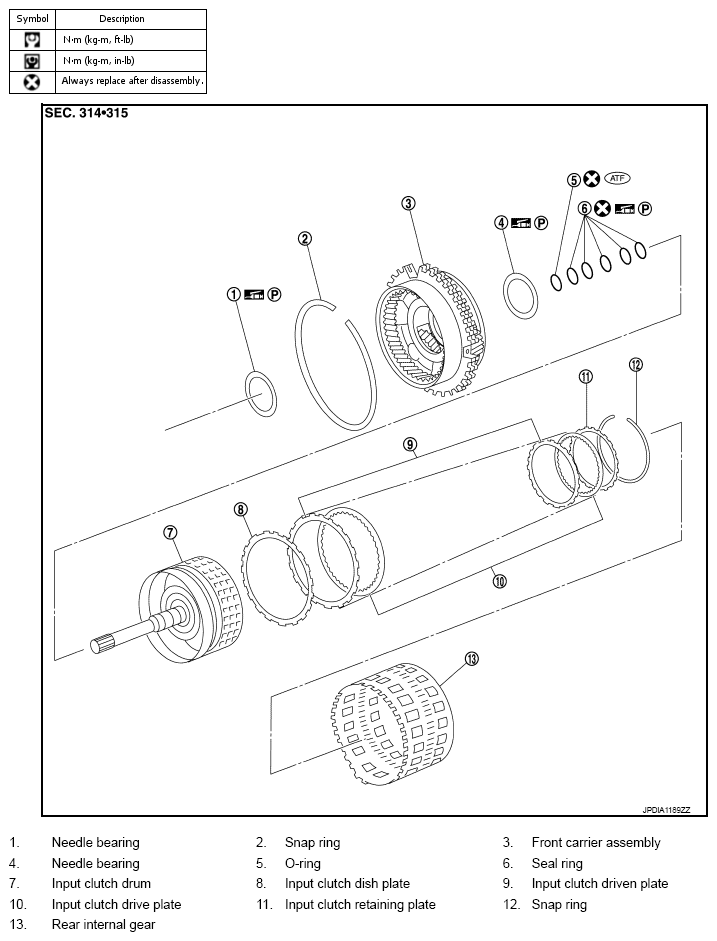

Fig 1: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
