A/T CONTROL SYSTEM: Component Parts Location

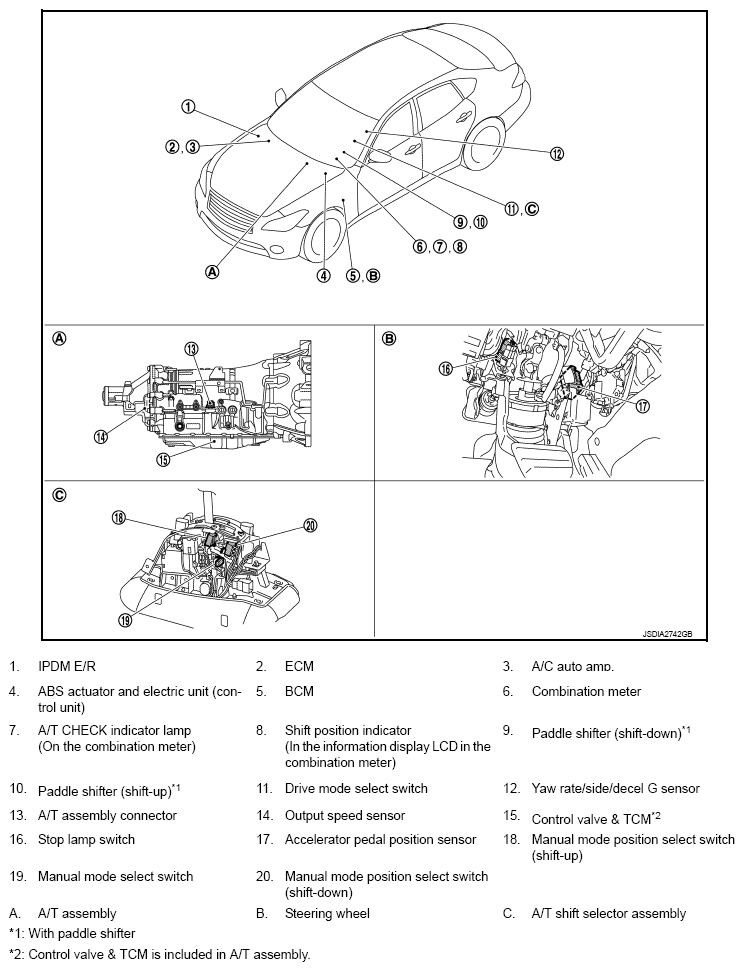

Fig 1: Identifying A/T Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve & TCM (15).

• TCM
• Input speed sensor 1, 2
• A/T fluid temperature sensor
• Transmission range switch
• Direct clutch solenoid valve
• High and low reverse clutch solenoid valve
• Input clutch solenoid valve
• Front brake solenoid valve
• Low brake solenoid valve
• Anti-interlock solenoid valve
• 2346 brake solenoid valve
• Line pressure solenoid valve
• Torque converter clutch solenoid valve
