2WD: Removal and Installation: Installation
Note the following, and install in the reverse order removal.
CAUTION:
- Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
- Never reuse drain plug gasket.
- Refer to the following when installing output speed sensor.
CAUTION:
- Never subject it to impact by dropping or hitting it.
- Never disassemble.
- Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Never place in an area affected by magnetism.
- Refer to the following when installing rear extension assembly.

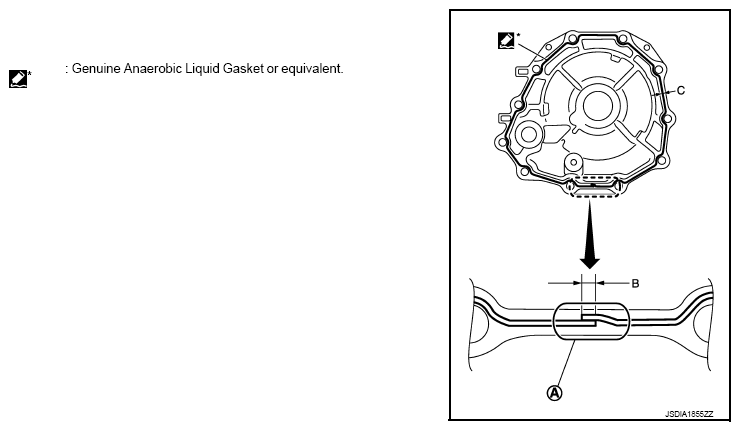

- Apply recommended sealant to rear extension assembly as shown in the figure below.
Sealant starting point and end point (A): Start and finish point shall be in the center of two bolts.
Overlap width of sealant starting point and end point (B): 3 - 5 mm (0.12 - 0.20 in)
Sealant width (C): 1.0 - 2.0 mm (0.04 - 0.08 in)
Sealant height (C): 0.4 - 1.0 mm (0.016 - 0.04 in)

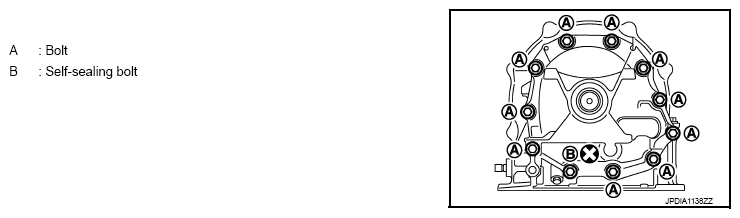

CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces. - Tighten rear extension assembly bolts to the specified torque.
- Apply recommended sealant to rear extension assembly as shown in the figure below.
- Refer to the following when installing oil pan (2) (with oil pan gasket) and clips (1) to transmission case.
CAUTION:
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Install it so that drain plug comes to the position as shown in the figure below.
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
- Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure below after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque.
