Removal and Installation: Installation
Note the following, and install in the reverse order of removal.
CAUTION:
- Be careful not to damage connector when installing any connector.
- Never reuse joint connector.
- Apply ATF to O-ring of joint connector.
- Never reuse drain plug and drain plug gasket. In addition, install new drain plug and drain plug gasket after adjustment of A/T fluid filling.
- Refer to the following when installing the control valve & TCM to transmission case.
CAUTION:
- Make sure that input speed sensor securely installs input speed sensor holes (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve & TCM.
- Adjust joint connector of the control valve & TCM to terminal hole of transmission case.
- Assemble it so that manual valve (1) cutout is engaged with manual plate (2) projection.

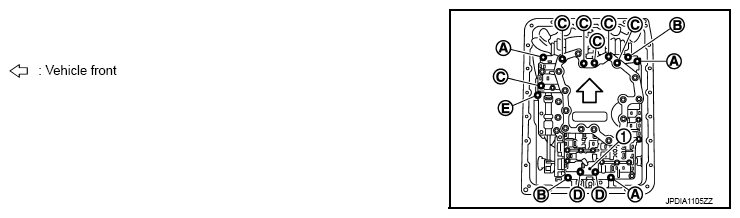

- Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.
| Bolt symbol | Length mm (in) | Number of bolts | ||
|---|---|---|---|---|
| A | 43 (1.69) | 3 | ||
| B | 40 (1.57) | 2 | ||
| C | 54 (2.13) | 6 | ||
| D | 50 (1.97) | 2 | ||
| E(1) | 50 (1.97) | 1 | ||
|
||||
- Refer to the following when installing oil pan to transmission case.CAUTION:
- Clean foreign materials (gear wear particles) from the inside of the oil pan and the magnet.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface of transmission case and oil pan.
- Never reuse oil pan gasket and oil pan mounting bolts.
- Install oil pan gasket in the direction to align hole position.
- Tighten the oil pan mounting bolts to the specified torque in the numerical order as shown in the figure below after temporarily tightening them.
