Hazard And Horn Reminder Function
WARNING: This page is about a different car, the 2013 Infiniti M56 and 2013 Infiniti M37. However, it is still accessible from the selected car via links, so may be relevant.
When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder and transmits horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.
The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).
OPERATING FUNCTION OF HAZARD AND HORN REMINDER
| C mode | S mode | |||||
|---|---|---|---|---|---|---|
| Intelligent Key operation | Lock | Unlock | Trunk open | Lock | Unlock | Trunk open |
| Hazard warning lamp blinks | Twice | Once | - | Twice | - | - |
| Horn sound | Once | - | - | - | - | - |
Hazard and horn reminder does not operate if ignition switch ON position.
How to change hazard and horn reminder mode
With CONSULT
Refer to "INTELLIGENT KEY: CONSULT FUNCTION (BCM - INTELLIGENT KEY) ".
Without CONSULT

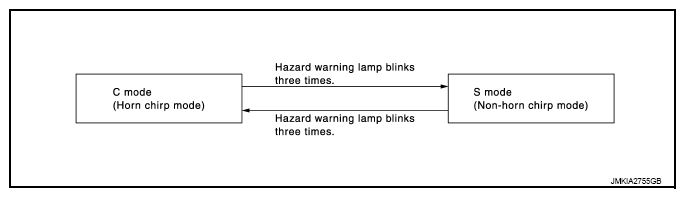

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time, the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the following items:
